Microwave Filter

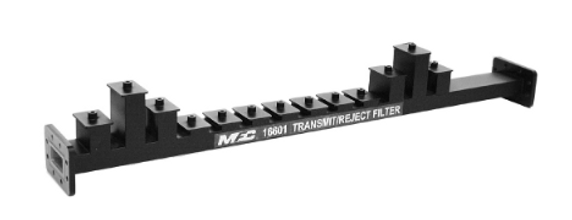

MFC X-Band Transmit Reject Filter Model 16601
Condition:
New
Weight:
1.63 KGS
Width:
54.60
(cm)
Height:
6.80
(cm)
Depth:
9.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
This downlink filter provides a CPR137 interface and offers extremely low loss, while exhibiting very high suppression of the uplink (transmit) band.
| Specification | Details |
| Passband | 7.25 - 7.75 GHz |
| Insertion Loss | 0.20 dB |
| VSWR | 1:15:01 |
| Rejection Band | 7.9 - 8.4 GHz |
| Rejection | 90 dB Min |
| Power | 250 Watts |
| Flanges | CPR137G |
| Weight | 3.5 lbs (1.63 Kg) |
| Dimensions | 21.5" x 2.69" x 3.7" (546mm x 68mm x 94mm) |
| Finish | Gray Lacquer |
5 customers are viewing this product
Details
This downlink filter provides a CPR137 interface and offers extremely low loss, while exhibiting very high suppression of the uplink (transmit) band.
| Specification | Details |
| Passband | 7.25 - 7.75 GHz |
| Insertion Loss | 0.20 dB |
| VSWR | 1:15:01 |
| Rejection Band | 7.9 - 8.4 GHz |
| Rejection | 90 dB Min |
| Power | 250 Watts |
| Flanges | CPR137G |
| Weight | 3.5 lbs (1.63 Kg) |
| Dimensions | 21.5" x 2.69" x 3.7" (546mm x 68mm x 94mm) |
| Finish | Gray Lacquer |
