Cobham

Cobham Sailor Fleet One Terminal WITHOUT IP Handset

(No reviews yet) Write a Review
SKU:
403744A-00595
MPN:
403744A-00595
Condition:
New
Availability:
YES
Weight:
4.20 KGS
  • Cobham Sailor Fleet One Terminal WITHOUT IP Handset
  • Cobham Sailor Fleet One Terminal WITHOUT IP Handset
$4,545.00

Description

SAILOR Fleet One is the ideal complement to the Inmarsat Fleet One service, which utilises the existing Inmarsat-4 satellite constellation to deliver satellite voice and connectivity services ideal for use on smaller boats. With its compact, lightweight antenna and simple installation, SAILOR Fleet One is a low-cost entry point to the world of maritime satcoms that keeps you connected at all times.



Easy installation


The SAILOR Fleet One antenna is light andeasy to install, even on small boats, and connecting to the below deck equipment is simple enough that keen owners can handle the installation and maintenance themselves. It may be small, but it packs enough power to deliver plenty of bandwidth for email, web browsing and social media sites.



First choice for Fleet One


Built by the people behind the leading SAILOR FleetBroadband range, SAILOR Fleet One is the first choice for boat owners choosing the Fleet One service because it ensures reliable connectivity even on smaller boats that don’t have the room, or the budget, for larger satcoms antennas.



Data & voice


SAILOR Fleet One enables data connectivity up to 150kbps and voice calling on a single line. Its capabilities offer significant communications functionality for recreational and fishing users who need reliable voice communications and Internet connectivity on board, when cellular networks are not available, or just don’t offer the quality needed for good communication



Unrivalled pedigree


SAILOR Fleet One is designed to the same high standards as the existing SAILOR FleetBroadband product line; quality that more than 60,000 end-users have experienced so far. With ease of use and durability at the forefront, you can trust SAILOR Fleet One to provide reliable, high quality communications whether cruising offshore or fishing for a living.



Robust terminal


Specially designed for the rough maritime environment, the Fleet One terminal is compact, robust, and easy to install. You can use the standard “plug and play” Ethernet connection for your laptop, or have the optional Wi-Fi router for multiple users.

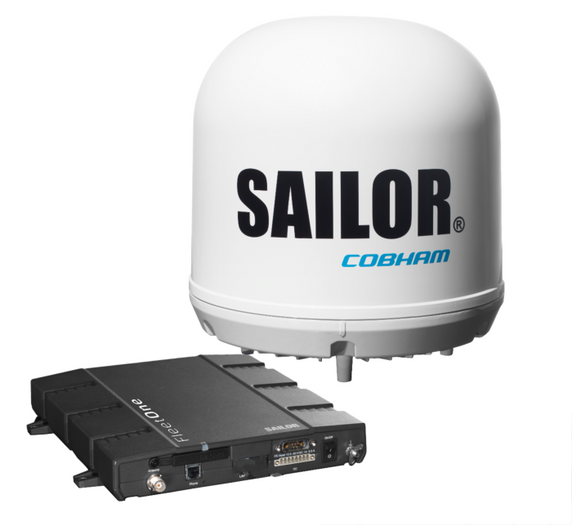

SAILOR Fleet One Above Deck Unit (3,9 kg)

SAILOR Fleet One Below Deck Unit (2,0 kg)



APPROVALS
Inmarsat Fleet One approved. Compliant to RTTE, CE Marked. Testet to FCC part 25

FREQUENCY BAND
Rx 1518 - 1559 MHz
Tx 1626.5 - 1660.5 MHz
1668.0 - 1675.0 MHz
Ch. spacing 10.5 -189 kHz, Rx
21 - 189 kHz, Tx
Ch. size 1.25 KHz
RECOMMENDED ANTENNA CABLE
Cable loss max/min 20 dB at 1,62 GHz and 1.0 Ω DC loop resistance
max. 3 dB at 36 - max. 4 dB at 54 MHz
POWER SUPPLY AND CONSUMPTION
DC input range (isolated) 10.5V to 32V DC
Power (max), 120 W @ 10-32 V
incl. antenna & PoE output
ENVIRONMENTAL CONDITIONS
Ambient Temperature -25 to +55°C
Storage -40 to +85°C
Survival (power on, non functional) -40 to +80°C
Automatic thermal surveillance shuts down system gradually in ease of own temperature
BDU operating humidity 95% non-condensing at +40°C
ADU enclosure IPX6
ADU operating humidity “Exposed” according to EN60 945
BDU enclosure IP30
Icing (survival) Max 25 mm
VIBRATION (ADU)
Vibration, operational Random spectrum 1.05 g rms x 3 axes:
5 to 20 Hz: 0.02 g2/Hz
20 to 150 Hz: -3 dB/octave
Vibration, non-operational Random spectrum 1.7 g rms 2 h x 3 axes (6 h total):
5 to 20 Hz: 0.05 g2/Hz,
20 to 150 Hz: -3 dB/octave

SHIP MOTION
Roll +/- 30 deg. per. 4 s, max 0.7 g tan.
Pitch +/- 15 deg. per. 3 s, max 0.6 g tan.
Yaw +/- 10 deg. per. 5 s, max 0.3 g tan.
Surge +/- 0.5g
Sway +/- 0.5g
Heave +/- 0.7g
Turning rate +/- 36˚/s; ACC 12˚/s²
Headway speed 22 m/s (42 knots)
Wind 100 knots

MECHANICAL SHOCK
20g/11 half-sine
ANTENNA CONNECTOR
ADU TNC, female
BDU TNC, female
SERVICES
Standard IP Up to 150 kbps
Streaming IP -
ISDN Data -
SMS (standard 3G) 160 characters
Standard Voice 4 kbps
INTERFACES
Ethernet/PoE 2 ports
Phone/Fax (2-wire) 1 port
I/O Connector 1 connector with 5 configurable inputs/outputs
Status LED LED power indicator
SIM Card Slot 1 SIM Card slot for Fleet One SIM card
Router Integral DHCP/

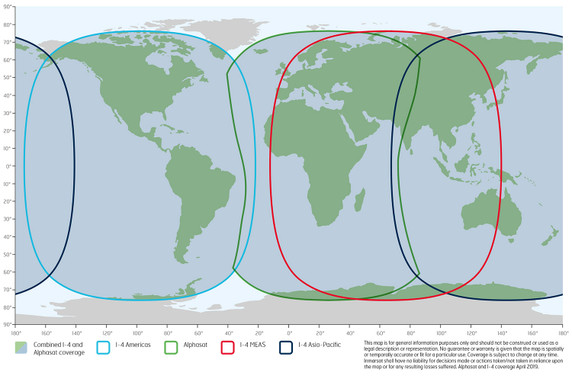

COVERAGE AND RATE REGIONS

North America, South America, Europe, Asia, Africa, Australia
