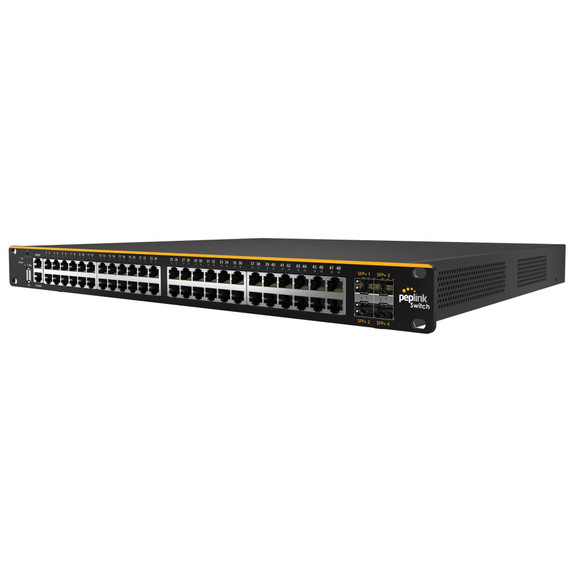

Peplink PSW-48-800W 48-Port SD Switch
Peplink PSW-48-800W Enterprise-Grade PoE+ Switch with Cloud Intelligence
The PSW-48-800W 52-Port Rugged SD Switch allows you to scale your network by adding additional Ethernet ports. It comes with a robust enclosure and uninterrupted power supply, making it ideal for enterprise-grade deployments. The Switch comes with 4x SFP+ Ports that support SFP+ data transmission. SFP+ is an updated version of the SFP, and it can reach 10Gb/sec uplink capacity, while SFP reaches around 1Gb/sec uplink capacity. So, the PSW-48-800W with this SFP+ feature can enable a superior performance for your network. The PSW-48-800W also comes with out-of-band management features, which provides extra redundancy for your network.
The PSW-48-800W is best-suited for Enterprise deployments. It comes with 48x PoE+ GE ports, which provide an over-power solution to fulfill demanding network requirements, due to the different business nature. The redundant power supply protects your business from being interrupted. Complying with InControl, users can effortlessly manage complex enterprise networks and make scalable LAN management possible.
Key Features
- Cloud Managed Switch
- 802.3at on all 48 Ports
- 48x 802.3at PoE GE Ports, 4x SFP+ Ports
- 4x Fiber Module 10 Gbps
- Power budget of 800W
- Power Input 2x 100V - 240V AC Input, With Power Redundancy
- Power Source 3x PowerFusion-Enabled PSU
- InControl2 Cloud Management
In the Box
- SD Switch 48-Port Enterprise
- 2x Power Cord (ACW-614)
- 2x L-Mount for switch back side
- Screw set for rack mounting
- Rubber Foot Pad set
Category | Ethernet Switch |
Total Ports | 52 |
Ethernet Ports | 48 Gigabit PoE+ |
Fiber Ports | 4x Fiber 1G SFP |
MAC Table Size | 32 kB |
Power Consumption | 100W System,800W PoE+ Power Budget |
Input Voltage | 2x 100V - 240V AC Input |
Dimensions | 15.7 x 19.1 x 1.7 in (400 x 485 x 45 mm) |
Weight | 15.4 pounds |
Operating Temperature | 32° to 104°F (0° to 40°C) |
Humidity | 15% - 95% non-condensing |
Peplink PSW-48-800W Enterprise-Grade PoE+ Switch with Cloud Intelligence
The PSW-48-800W 52-Port Rugged SD Switch allows you to scale your network by adding additional Ethernet ports. It comes with a robust enclosure and uninterrupted power supply, making it ideal for enterprise-grade deployments. The Switch comes with 4x SFP+ Ports that support SFP+ data transmission. SFP+ is an updated version of the SFP, and it can reach 10Gb/sec uplink capacity, while SFP reaches around 1Gb/sec uplink capacity. So, the PSW-48-800W with this SFP+ feature can enable a superior performance for your network. The PSW-48-800W also comes with out-of-band management features, which provides extra redundancy for your network.
The PSW-48-800W is best-suited for Enterprise deployments. It comes with 48x PoE+ GE ports, which provide an over-power solution to fulfill demanding network requirements, due to the different business nature. The redundant power supply protects your business from being interrupted. Complying with InControl, users can effortlessly manage complex enterprise networks and make scalable LAN management possible.
Key Features
- Cloud Managed Switch
- 802.3at on all 48 Ports
- 48x 802.3at PoE GE Ports, 4x SFP+ Ports
- 4x Fiber Module 10 Gbps
- Power budget of 800W
- Power Input 2x 100V - 240V AC Input, With Power Redundancy
- Power Source 3x PowerFusion-Enabled PSU
- InControl2 Cloud Management
In the Box
- SD Switch 48-Port Enterprise
- 2x Power Cord (ACW-614)
- 2x L-Mount for switch back side
- Screw set for rack mounting
- Rubber Foot Pad set
Category | Ethernet Switch |
Total Ports | 52 |
Ethernet Ports | 48 Gigabit PoE+ |
Fiber Ports | 4x Fiber 1G SFP |
MAC Table Size | 32 kB |
Power Consumption | 100W System,800W PoE+ Power Budget |
Input Voltage | 2x 100V - 240V AC Input |
Dimensions | 15.7 x 19.1 x 1.7 in (400 x 485 x 45 mm) |
Weight | 15.4 pounds |
Operating Temperature | 32° to 104°F (0° to 40°C) |
Humidity | 15% - 95% non-condensing |
Download Name | |
Peplink 48-Port SD Switch Data Sheet |
