Norsat International Inc.

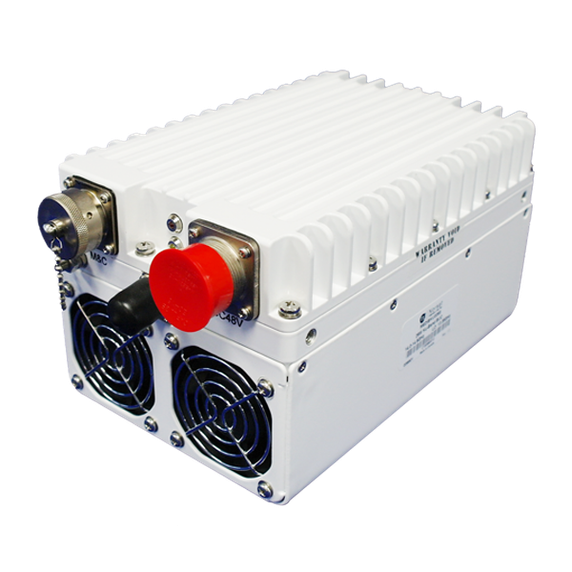

Norsat MEDIBKU040S MEDIAN 40W Ku-Band BUC - DEMO
Product Code:
MEDIBKU040S
Condition:
New
Availability:
1 pcs
Weight:
4.50 KGS
Width:
13.90
(cm)
Height:
11.70
(cm)
Depth:
20.60
(cm)
$8,190.00
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series constraints are not as stringent.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 13.05 GHz |
| Output Frequency Band 1 | 14.0 - 14.5 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Input Power | via IFL |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +36 to +72V |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 350 mm x 220 mm x 215 mm |
| Unit Package Height | 215 mm |
| Unit Package Length | 350 mm |
| Unit Package Weight | 5.18 kg |
| Unit Package Width | 220 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series constraints are not as stringent.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 13.05 GHz |
| Output Frequency Band 1 | 14.0 - 14.5 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Input Power | via IFL |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +36 to +72V |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 350 mm x 220 mm x 215 mm |
| Unit Package Height | 215 mm |
| Unit Package Length | 350 mm |
| Unit Package Weight | 5.18 kg |
| Unit Package Width | 220 mm |
| Warranty | 1 year |
Download
| Download Name | |
| Norsat MEDIBKU040S 40W Ku-Band BUC Data Sheet | |
