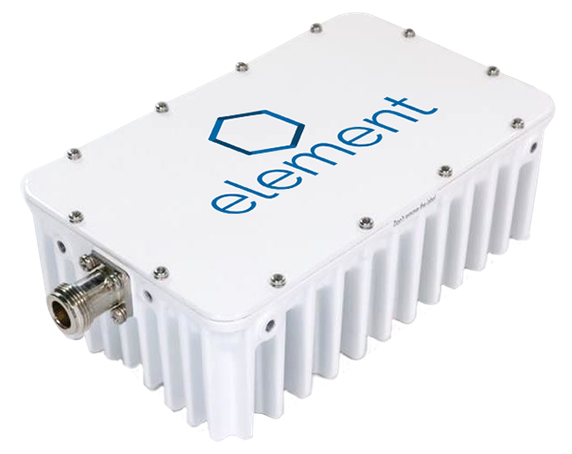

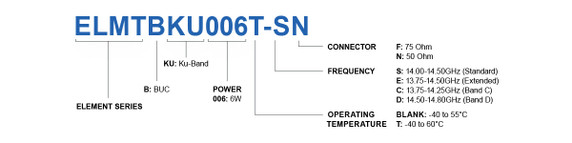

Norsat ELMTBKU006-SN 6W Ku-Band BUC
Product Code:
ELMTBKU006-SN
Availability:
YES
Weight:
2.70 KGS
Width:
16.90
(cm)
Height:
10.10
(cm)
Depth:
17.59
(cm)
$1,500.00
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ku-Band |
| Output Power (Rated) | 6W |
| Input Frequency - Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 39.5 dBm min. |
| Output Power( P1dB) | 39 dBm min. |
| Noise Power Density | -80 dBm/Hz in Tx; -156 dBm/Hz in Rx |
| LO Frequency 1 | 13.05 GHz |
| Phase Noise @ 100Hz offset | -60 dBc/Hz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Phase Noise @ 1MHz offset | -100 dBc/Hz |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Gain Variation over temperature | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | ≤ -60 dBc (in band); ≤ -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 75W max. |
| Power Requirements | +18V to +24V DC via IFL |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| Temperature - Storage | -40 to +80°C |
| Humidity | 0-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Dimensions (L x W x H) | 175.9 x 169 x 101 mm |
| Weight | 2.7 kg |
5 customers are viewing this product
Details
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ku-Band |
| Output Power (Rated) | 6W |
| Input Frequency - Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 39.5 dBm min. |
| Output Power( P1dB) | 39 dBm min. |
| Noise Power Density | -80 dBm/Hz in Tx; -156 dBm/Hz in Rx |
| LO Frequency 1 | 13.05 GHz |
| Phase Noise @ 100Hz offset | -60 dBc/Hz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Phase Noise @ 1MHz offset | -100 dBc/Hz |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Gain Variation over temperature | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | ≤ -60 dBc (in band); ≤ -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 75W max. |
| Power Requirements | +18V to +24V DC via IFL |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| Temperature - Storage | -40 to +80°C |
| Humidity | 0-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Dimensions (L x W x H) | 175.9 x 169 x 101 mm |
| Weight | 2.7 kg |
