Norsat International Inc.
Norsat Bias Tee BT-2183
Product Code:
BT-2183
Availability:
YES
Weight:
0.17 KGS
Width:
10.50
(cm)
Height:
0.55
(cm)
Depth:
0.25
(cm)
$541.00
| KEY SPECIFICATIONS | |
| Product Family | Bias Tee |
| Band | L-Band |
| Input Frequency - Band 1 | L-Band: 950 - 2150 MHz |
| RF SPECIFICATIONS | |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +50˚C |
| Temperature - Storage | -40 to +70˚C |
| PHYSICAL SPECIFICATIONS | |

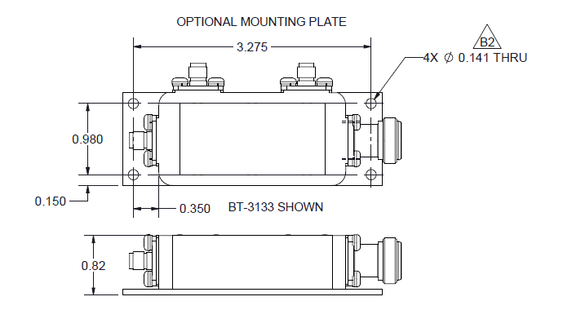

| Dimensions (L x W x H) | 105 x 55 x 25 mm |
| Weight | 170 g |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Product Family | Bias Tee |
| Band | L-Band |
| Input Frequency - Band 1 | L-Band: 950 - 2150 MHz |
| RF SPECIFICATIONS | |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +50˚C |
| Temperature - Storage | -40 to +70˚C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 105 x 55 x 25 mm |
| Weight | 170 g |
