Norsat ATOMSKU040S2F 40W Ku-Band BUC

No reviews yet

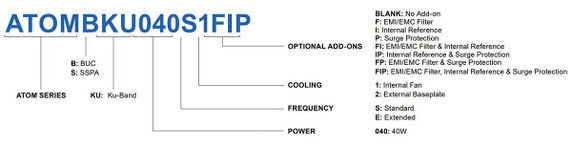

Product Code: ATOMSKU040S2F
Availability: YES
Weight: 2.50 KGS
Width: 9.00 (cm)
Height: 19.30 (cm)
Depth: 16.90 (cm)
$22,448.83

The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

ATOM SSPA 40W, KU-BAND 14.0-14.5GHz, EXT BASEPLATE,N-CONN,WR75,EMI FLTR
KEY SPECIFICATIONS
Product Family ATOM
Band Ku-Band
Output Power (Rated) 40W
Input Frequency - Band 1 Ku-Band: 14.0 - 14.50 GHz
Output Frequency 1 Ku-Band: 14.0 - 14.50 GHz

RF SPECIFICATIONS
Output Power (Saturated) 47 dBm min.
Output Power( P1dB) 46 dBm min.
Phase Noise @ 1KHz offset -72 dBc/Hz
Phase Noise @ 10KHz offset -82 dBc/Hz
Phase Noise @ 100KHz offset -92 dBc/Hz
Phase Noise @ 1MHz offset -102 dBc/Hz
Gain Variation over operating band ≤ 8.0 dB p-p
Gain Variation over temperature ≤ 3.0 dB p-p
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Spurious In-Band: ≤ -60 dBc; Out-of-Band(@P1dB):≤ -55 dBc

ELECTRICAL SPECIFICATIONS
Input Voltage 18V to + 56V DC
Power Consumption @Psat 305 W max.
Power Connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P

INTERFACE SPECIFICATIONS
RF Input Connector SMA- 50 Ohm
RF Output Connector WR-75 waveguide grooved

M & C SPECIFICATIONS
M & C Interface RS-485 & RS-232
M & C Connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-10P
Mute Control Fully configurable

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -50 to +80°C
Humidity 100% condensing

PHYSICAL SPECIFICATIONS
Cooling External Baseplate
Enclosed Accessories Screws, Gasket, M&C Connector, Power Connector

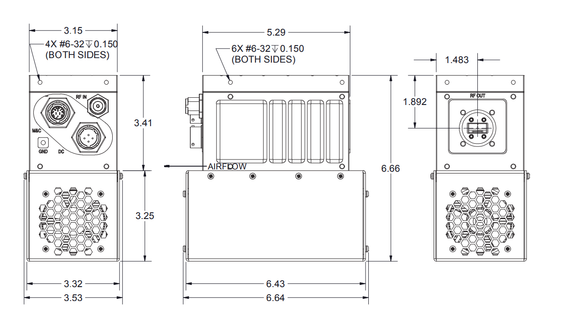

Dimensions (L x W x H) 169 x 90 x 193 mm
Weight < 2.5 kg
