Norsat International Inc.
Norsat ATOMSKA050C1CP 50W Ka-Band BUC

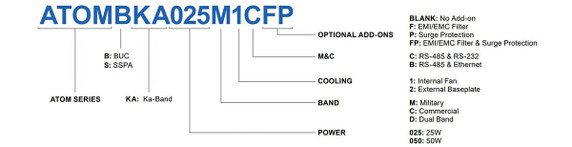

Product Code:
ATOMSKA050C1CP
Availability:
YES
Weight:
6.90 KGS
Width:
14.00
(cm)
Height:
12.00
(cm)
Depth:
30.00
(cm)
$42,526.83
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| ATOM SSPA 50W,Ka-Band 29.0-30.0GHz,INT FAN,RS-232,RS-485,SURGE PROT |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ka-Band |
| Output Power (Rated) | 50W |
| Input Frequency - Band 1 | Ka-Band: 29.00 - 30.00 GHz |
| Output Frequency 1 | Ka-Band: 29.00 - 30.00 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 47 dBm min. |
| Phase Noise @ 100Hz offset | -66 dBc/Hz |
| Phase Noise @ 1KHz offset | -76 dBc/Hz |
| Phase Noise @ 10KHz offset | -86 dBc/Hz |
| Phase Noise @ 100KHz offset | -96 dBc/Hz |
| Phase Noise @ 1MHz offset | -106 dBc/Hz |
| Conversion Gain | 63 dB typ |
| Gain Variation over operating band | ≤ 3 dB p-p |
| Gain Variation over temperature | ≤ 2.0 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 1.9 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 580 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | WR-28 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-485 & RS-232 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-4P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -54 to +71°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 300 x 140 x 120 mm |
| Weight | 6.9 kg |
5 customers are viewing this product
Details
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| ATOM SSPA 50W,Ka-Band 29.0-30.0GHz,INT FAN,RS-232,RS-485,SURGE PROT |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ka-Band |
| Output Power (Rated) | 50W |
| Input Frequency - Band 1 | Ka-Band: 29.00 - 30.00 GHz |
| Output Frequency 1 | Ka-Band: 29.00 - 30.00 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 47 dBm min. |
| Phase Noise @ 100Hz offset | -66 dBc/Hz |
| Phase Noise @ 1KHz offset | -76 dBc/Hz |
| Phase Noise @ 10KHz offset | -86 dBc/Hz |
| Phase Noise @ 100KHz offset | -96 dBc/Hz |
| Phase Noise @ 1MHz offset | -106 dBc/Hz |
| Conversion Gain | 63 dB typ |
| Gain Variation over operating band | ≤ 3 dB p-p |
| Gain Variation over temperature | ≤ 2.0 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 1.9 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 580 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | WR-28 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-485 & RS-232 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-4P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -54 to +71°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 300 x 140 x 120 mm |
| Weight | 6.9 kg |
Download
| Download Name | |
| Norsat ATOMSKA050C1CP 50W Ka-Band BUC Data Sheet | |
