Norsat International Inc.

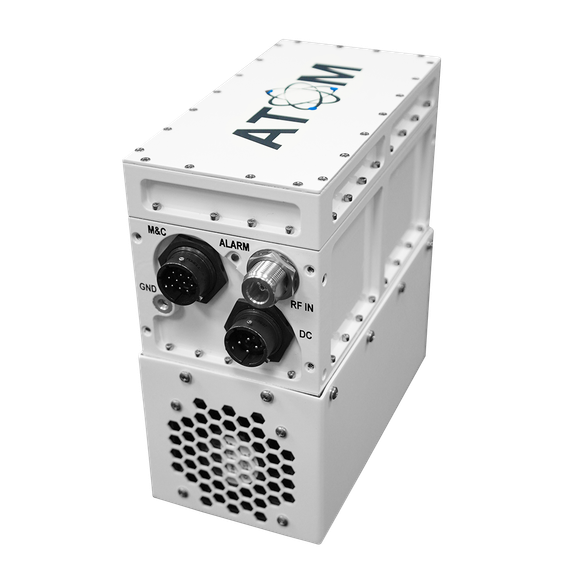

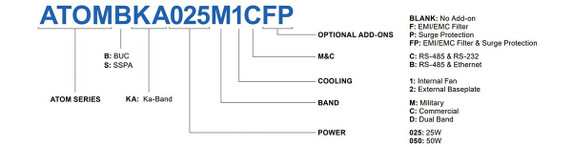

Norsat ATOMSKA025D2BF ATOM 25W Ka-Band SSPA
Product Code:
ATOMSKA025D2BF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.40 KGS
Width:
8.00
(cm)
Height:
17.00
(cm)
Depth:
14.00
(cm)
$31,566.83
The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Band Type | D: Dual Band |
| Input Frequency Band 1 | 950 - 1950 MHz |
| Input Frequency Band 2 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| LO Frequency 2 | 29.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Frequency Band 2 | 30.00 - 31.00 GHz |
| Output Power Rated | 25W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 3.5 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input Power | via power connector |
| Input VSWR | 2.5 : 1 max. |
| Linear Gain | 60 dB typ., 55 dB min., 65 dB max. |
| Linear Power Plin | 41 dBm min. |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Psat | 44 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -60 dBc |
| Output VSWR | 1.9 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -62 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Maximum Current 20 VDC | 14.8A max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 285 W max. |
| Power Requirements | +20 to +56 V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA-Connector |
| RF Output Connector | WR-28 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M And C Interface | RS-485 & Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -54 to +71°C |
| Thermal Shutdown Temperature | 90°C (Accuracy ± 3°C) |

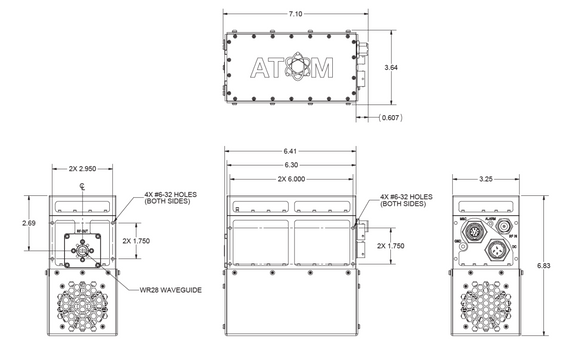

| PHYSICAL SPECIFICATIONS | |
| Cooling | 2: External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 170 mm |
| Product Length | 140 mm |
| Product Weight | 2.4 kg |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.18 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 5.45 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
Details
The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Band Type | D: Dual Band |
| Input Frequency Band 1 | 950 - 1950 MHz |
| Input Frequency Band 2 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| LO Frequency 2 | 29.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Frequency Band 2 | 30.00 - 31.00 GHz |
| Output Power Rated | 25W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 3.5 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input Power | via power connector |
| Input VSWR | 2.5 : 1 max. |
| Linear Gain | 60 dB typ., 55 dB min., 65 dB max. |
| Linear Power Plin | 41 dBm min. |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Psat | 44 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -60 dBc |
| Output VSWR | 1.9 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -62 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Maximum Current 20 VDC | 14.8A max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 285 W max. |
| Power Requirements | +20 to +56 V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA-Connector |
| RF Output Connector | WR-28 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M And C Interface | RS-485 & Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -54 to +71°C |
| Thermal Shutdown Temperature | 90°C (Accuracy ± 3°C) |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 2: External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 170 mm |
| Product Length | 140 mm |
| Product Weight | 2.4 kg |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.18 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 5.45 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
