Norsat International Inc.

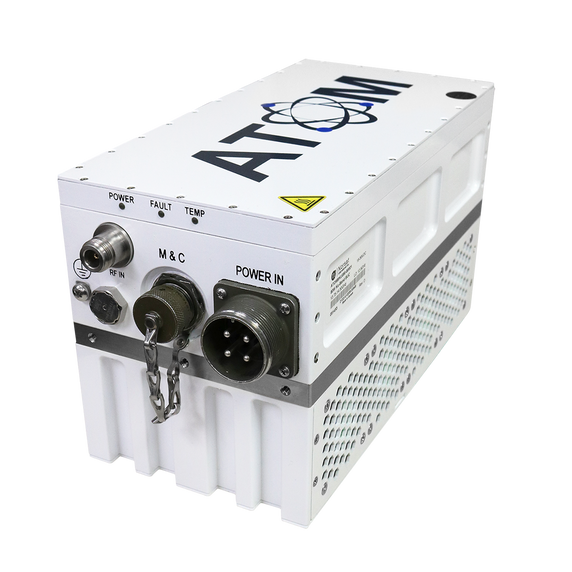

Norsat ATOMBKU080S2BI ATOM 80W Ku-Band BUC

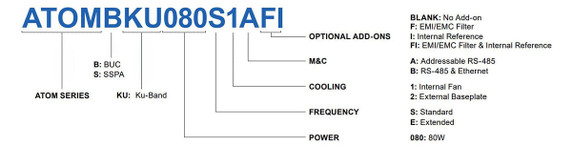

Product Code:
ATOMBKU080S2BI
Condition:
New
Availability:
10 - 12 Weeks
Weight:
6.50 KGS
Width:
13.50
(cm)
Height:
16.40
(cm)
Depth:
29.50
(cm)
$40,120.83
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | S: Standard |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 13.05 GHz |
| Output Frequency Band 1 | 14.00 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | ≥ 60 dB |
| Noise Power Density | -65 dBm/Hz in Tx, -65 dBm/Hz in Rx |
| Output Power Psat | 50 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 22, 4 Pins, ACS06E22-22P-472 |
| Power Consumption Psat | 610 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M And C Interface | RS-485 & Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +80°C |

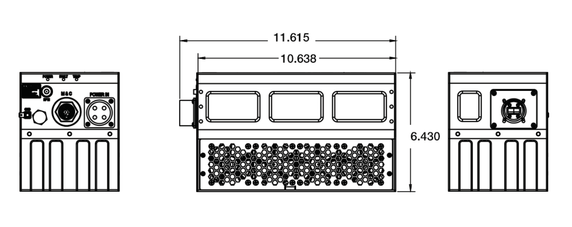

| PHYSICAL SPECIFICATIONS | |
| Cooling | 2: External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 164 mm |
| Product Length | 295 mm |
| Product Weight | 6.5 kg |
| Product Width | 135 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
Details
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | S: Standard |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 13.05 GHz |
| Output Frequency Band 1 | 14.00 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | ≥ 60 dB |
| Noise Power Density | -65 dBm/Hz in Tx, -65 dBm/Hz in Rx |
| Output Power Psat | 50 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 22, 4 Pins, ACS06E22-22P-472 |
| Power Consumption Psat | 610 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M And C Interface | RS-485 & Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 2: External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 164 mm |
| Product Length | 295 mm |
| Product Weight | 6.5 kg |
| Product Width | 135 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
