Norsat International Inc.
Norsat 9200HT-3F-TSDM 9000 Triple-Band Ka-Band PLL LNB - TEST DEMO
Product Code:
9200HT-3F-TSDM
Condition:
New
Availability:
2
Weight:
0.50 KGS
Width:
7.00
(cm)
Height:
3.90
(cm)
Depth:
13.30
(cm)
$4,400.00
PRODUCT TEST DEMO NOT FOR SALE
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000HT-3 Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.30 - 18.30 GHz |
| Input Frequency Band 2 | 18.30 - 19.30 GHz |
| Input Frequency Band 3 | 19.30 - 20.30 GHz |
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| LO Stability | ±25 kHz |
| LO Type | PLL |
| Noise Figure Max | 2.0 dB |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Control Signal 3 | 13V / 22kHz Tone |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 58 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness | ±2 dB max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +11 to +26V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

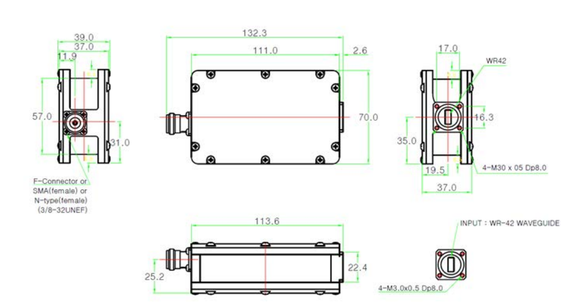

| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 133 mm |
| Product Weight | 0.5 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.312 kg |
| Aluminium Total Value | $ 0.78 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 133 x 70 x 44 mm |
| Unit Package Height | 44 mm |
| Unit Package Length | 133 mm |
| Unit Package Weight | 0.5 kg |
| Unit Package Width | 70 mm |
| Warranty | 3 years |
