Norsat International Inc.
Norsat 8000 Series 8000RIN C-Band Single-Band LNB
Product Code:
8000RIN
Availability:
YES
Weight:
0.45 KGS
Width:
10.00
(cm)
Height:
7.00
(cm)
Depth:
18.00
(cm)
$220.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. C-BAND DRO LNB; 3.625-4.8GHZ; LO:+/-500KHZ; LO FREQ: 5.75GHZ; NT: 30K N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 8000 Series |
| Band | C-Band |
| LO Type | DRO |
| # of onboard LOs | Single-band |
| LO Stability | +/- 500 kHz |
| Noise Figure | 35 K |
| Input Frequency - Band 1 | C-Band: 3.625 - 4.80 GHz |
| Output Frequency 1 | L-Band: 950 - 2125 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.75 GHz |
| Phase Noise @ 1KHz offset | -65 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 62 dB typ |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |

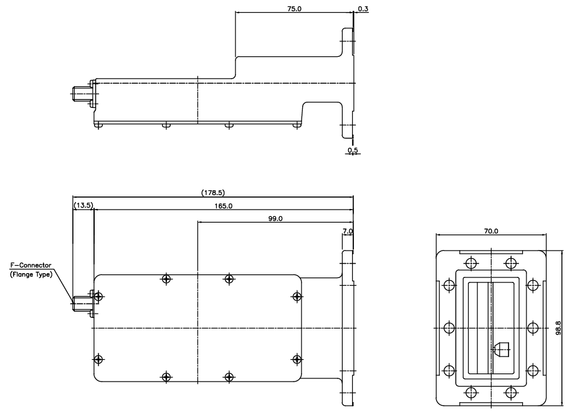

| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 450 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. C-BAND DRO LNB; 3.625-4.8GHZ; LO:+/-500KHZ; LO FREQ: 5.75GHZ; NT: 30K N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 8000 Series |
| Band | C-Band |
| LO Type | DRO |
| # of onboard LOs | Single-band |
| LO Stability | +/- 500 kHz |
| Noise Figure | 35 K |
| Input Frequency - Band 1 | C-Band: 3.625 - 4.80 GHz |
| Output Frequency 1 | L-Band: 950 - 2125 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.75 GHz |
| Phase Noise @ 1KHz offset | -65 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 62 dB typ |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 450 g |
