Norsat International Inc.

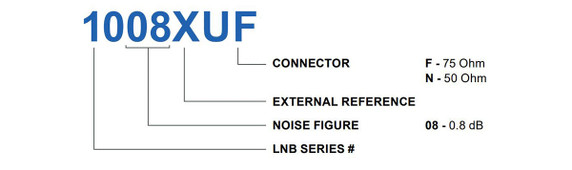

Norsat 1008XUN-TSDM 1000 Ku-Band Quad Band EXT REF LNB - TEST DEMO
Product Code:
1008XUN-TSDM
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.20
(cm)
Depth:
12.80
(cm)
$1,188.00
PRODUCT TEST DEMO NOT FOR SALE
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 1000XU Series.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 10.70 - 11.70 GHz |
| Input Frequency Band 2 | 10.95 - 11.70 GHz |
| Input Frequency Band 3 | 11.70 - 12.75 GHz |
| Input Frequency Band 4 | 12.25 - 12.75 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.00 GHz |
| LO Frequency 3 | 10.75 GHz |
| LO Frequency 4 | 11.30 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1700 MHz |
| Output Frequency Band 3 | 950 - 2000 MHz |
| Output Frequency Band 4 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector (waterproof) |
| RF Input Connector | WR-75 waveguide grooved (waterproof) |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 128 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.328 kg |
| Aluminium Total Value | $ 0.82 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 100 x 70 mm |
| Unit Package Height | 70 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.58 kg |
| Unit Package Width | 100 mm |
| Warranty | 3 years |
