Microwave Filter

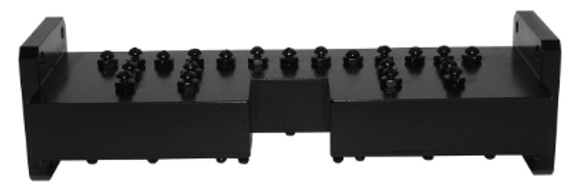

MFC X-Band Receive Reject Filter Model 19171

No reviews yet
Condition: New
Weight: 0.32 KGS
Width: 20.00 (cm)
Height: 4.80 (cm)
Depth: 6.70 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

By utilizing hybrid design techniques, the model 19171 transmit band filter is able to achieve extremely low through loss with deep receive band rejection.

Specification Value
Passband 7.9 - 8.4 GHz
Passband Loss 0.3 dB Typ
Passband Return Loss 20 dB Typ
Passband Power (CW) 200 Watts Max
Rejection 90 dB Min from 7.25 - 7.75 GHz
Flanges See options
Operating Temp. Range -10°C to +65°C
Weight 0.70 lbs (0.32 Kg)
Dimensions 7.87" x 1.88" x 2.63" (200mm x 48mm x 67mm)
Finish Flat Black Lacquer
Choose Options:
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

By utilizing hybrid design techniques, the model 19171 transmit band filter is able to achieve extremely low through loss with deep receive band rejection.

Specification Value
Passband 7.9 - 8.4 GHz
Passband Loss 0.3 dB Typ
Passband Return Loss 20 dB Typ
Passband Power (CW) 200 Watts Max
Rejection 90 dB Min from 7.25 - 7.75 GHz
Flanges See options
Operating Temp. Range -10°C to +65°C
Weight 0.70 lbs (0.32 Kg)
Dimensions 7.87" x 1.88" x 2.63" (200mm x 48mm x 67mm)
Finish Flat Black Lacquer
