ETL Systems

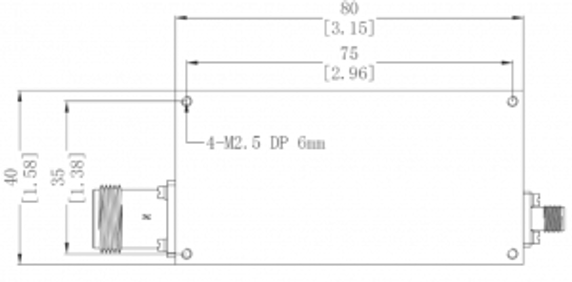

ETL Systems F-BPL1-7033 L-Band Bandpass Filter 7033
Product Code:
F-BPL1-7033
Condition:
New
Availability:
YES
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
L-band pass filter model: F-BPL1-7033 has a pass band of 2200-2400 MHz with ≤0.5 dB insertion loss @2300 MHz. 90dB rejection @≥1575 MHz and 60 dB @≥2500 MHz. VSWR ≤1.3 Fitted with SMA & N-type female RF connectors.
Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation, defence comms and radar networks.
| Connector Type | Model No. |
|---|---|
|
50 ohm SMA & 50 Ohm N-type
|
F-BPL1-7033-N5S5
|
|
50 ohm N-Type
|
F-BPL1-7033-N5N5
|
| Parameters | |
| Model | F-BPL1-7033 N5S5 |
| Frequency Range | 2200—2400 MHz |
| RF Connectors | 50Ω SMA Female & 50Ω N-type Female |
| Insertion Loss (dB) | ≤0.5 dB @ 2300 MHz |
| Return Loss (dB) | 19 dB, 17 dB |
| Rejection | ≥90 dB @ 1575 MHz, ≥60 dB @ 2500 MHz |
| Max RF Power | 30W |
| Environmental | |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Location | For Indoor use |
5 customers are viewing this product
Details
L-band pass filter model: F-BPL1-7033 has a pass band of 2200-2400 MHz with ≤0.5 dB insertion loss @2300 MHz. 90dB rejection @≥1575 MHz and 60 dB @≥2500 MHz. VSWR ≤1.3 Fitted with SMA & N-type female RF connectors.
Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation, defence comms and radar networks.
| Connector Type | Model No. |
|---|---|
|
50 ohm SMA & 50 Ohm N-type
|
F-BPL1-7033-N5S5
|
|
50 ohm N-Type
|
F-BPL1-7033-N5N5
|
| Parameters | |
| Model | F-BPL1-7033 N5S5 |
| Frequency Range | 2200—2400 MHz |
| RF Connectors | 50Ω SMA Female & 50Ω N-type Female |
| Insertion Loss (dB) | ≤0.5 dB @ 2300 MHz |
| Return Loss (dB) | 19 dB, 17 dB |
| Rejection | ≥90 dB @ 1575 MHz, ≥60 dB @ 2500 MHz |
| Max RF Power | 30W |
| Environmental | |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Location | For Indoor use |
Download
| Download Name | |
| L-Band Bandpass Filter 7033 Data Sheet | |
