Teltonika Networks

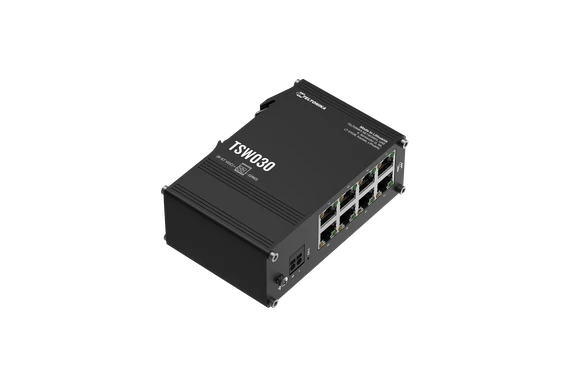

Teltonika Networks 14758050 TSW030 Switch 8 10/100 ports
Product Code:
14758050
Manufacturer Part Number (MPN):
TSW030000000
UPC:
4779051841431
Condition:
New
Weight:
0.26 KGS
Width:
11.31
(cm)
Height:
4.12
(cm)
Depth:
7.46
(cm)
$53.00
The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW030 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 256 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW030 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 256 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW030 Datasheet | |
