Teltonika Networks

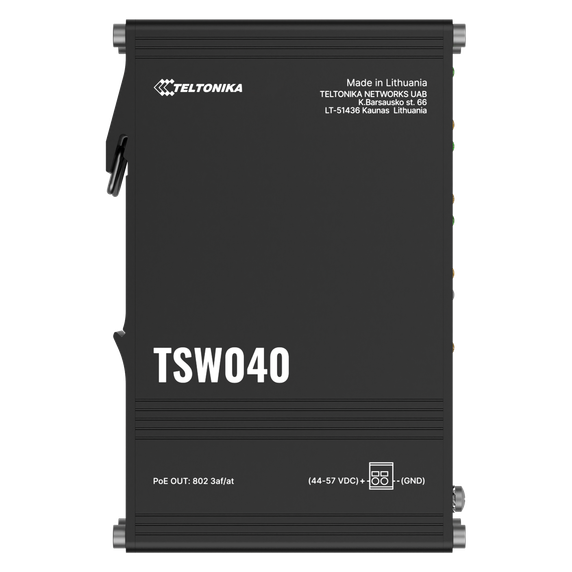

Teltonika Networks 14768154 TSW040 PoE+ Switch 8 10/100 ports with PSU
Product Code:
14768154
Manufacturer Part Number (MPN):
TSW040000200
UPC:
4779051845729
Condition:
New
Weight:
0.28 KGS
Width:
11.31
(cm)
Height:
4.12
(cm)
Depth:
7.46
(cm)
$189.00
TSW040 PoE+ Switch 8 10/100 ports with PSU
HW Modification: Standard Contents and branding: US PSU without connector 250 W, QSG, Teltonika box, engraved Teltonika TOP and BOT information, product information on the box
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW040 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LED Indicators |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3af and 802.3at |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 246- PoE Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Features: | This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 8 x ETH ports, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 8 x ETH ports, 10/100 Mbps |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 0.28 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW040 PoE+ Switch 8 10/100 ports with PSU
HW Modification: Standard Contents and branding: US PSU without connector 250 W, QSG, Teltonika box, engraved Teltonika TOP and BOT information, product information on the box
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW040 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LED Indicators |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3af and 802.3at |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 246- PoE Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Features: | This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 8 x ETH ports, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 8 x ETH ports, 10/100 Mbps |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 0.28 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW040 Datasheet | |
