Teltonika Networks

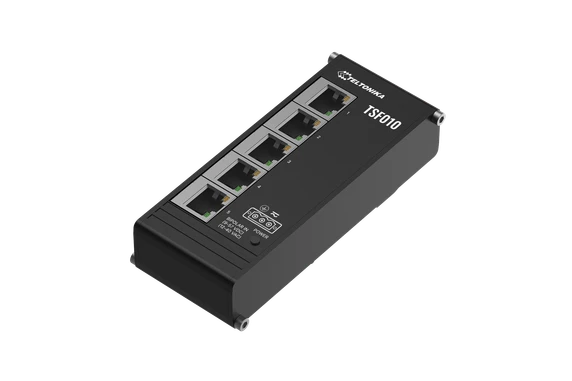

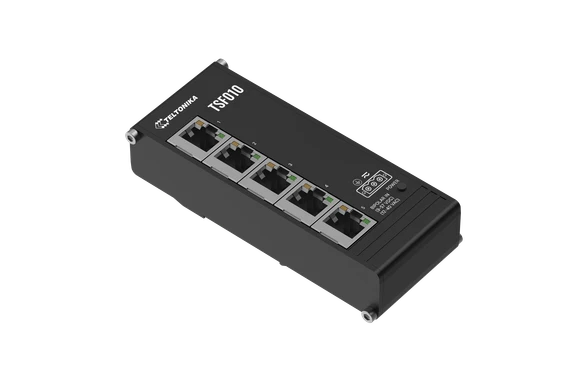

Teltonika Networks 14758048 TSF010 Flat Industrial Switch 5 x 100 ports
Product Code:
14758048
Manufacturer Part Number (MPN):
TSF010000000
UPC:
4779051841356
Condition:
New
Weight:
0.15 KGS
Width:
11.30
(cm)
Height:
2.80
(cm)
Depth:
5.00
(cm)
$41.00
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input supports both a flexible AC range and a wide DC voltage range, making it a reliable, unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSF010 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 5 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113 Mm |
| Depth: | 50 Mm |
| Height: | 28 Mm |
| Weight: | 142 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input supports both a flexible AC range and a wide DC voltage range, making it a reliable, unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSF010 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 5 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113 Mm |
| Depth: | 50 Mm |
| Height: | 28 Mm |
| Weight: | 142 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSF010 Datasheet | |
