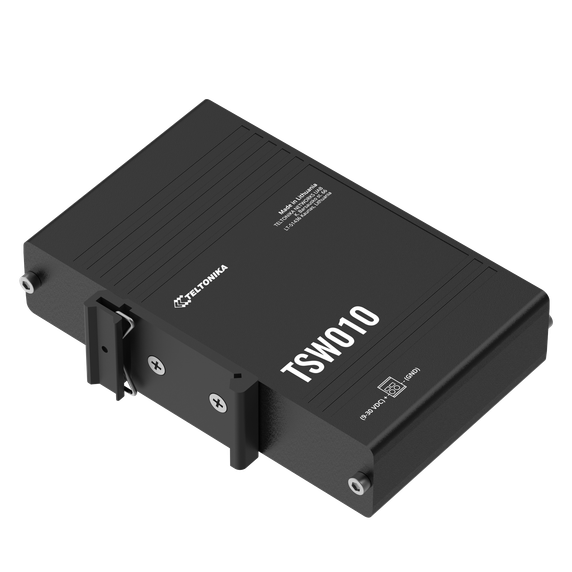

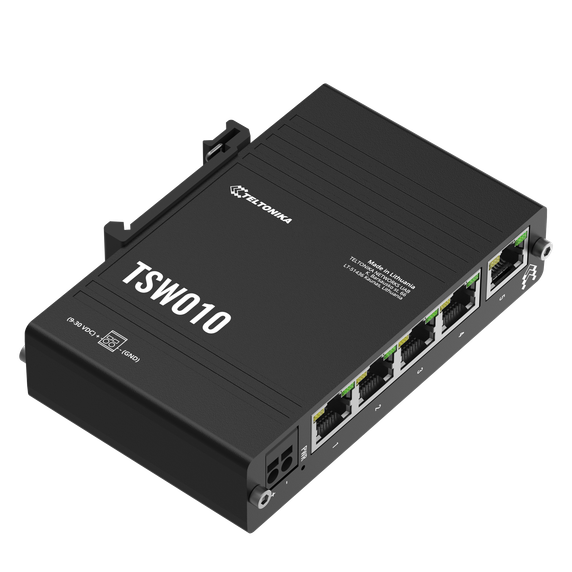

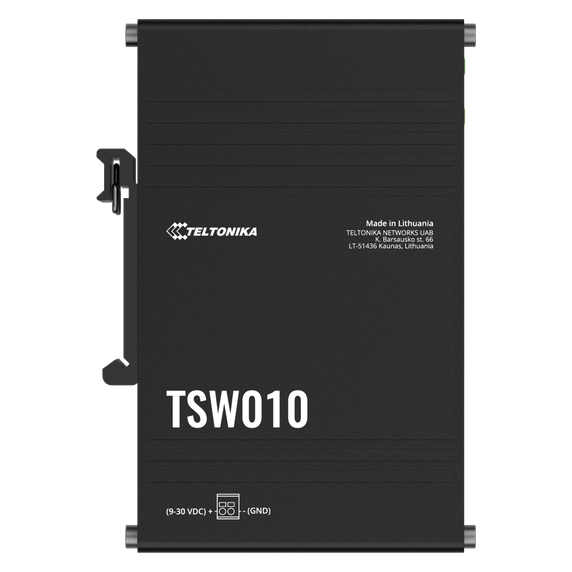

Teltonika Networks 14758049 TSW010 Switch 5 10/100 ports
Product Code:
14758049
Manufacturer Part Number (MPN):
TSW010000000
UPC:
4779051840274
Condition:
New
Weight:
0.18 KGS
Width:
11.31
(cm)
Height:
2.74
(cm)
Depth:
8.05
(cm)
$35.00
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW010 |
| Form Factor: | DIN-rail |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LED Indicators |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 0.9 Watt |
| Power / Voltage Required: | 9 - 30 VDC |

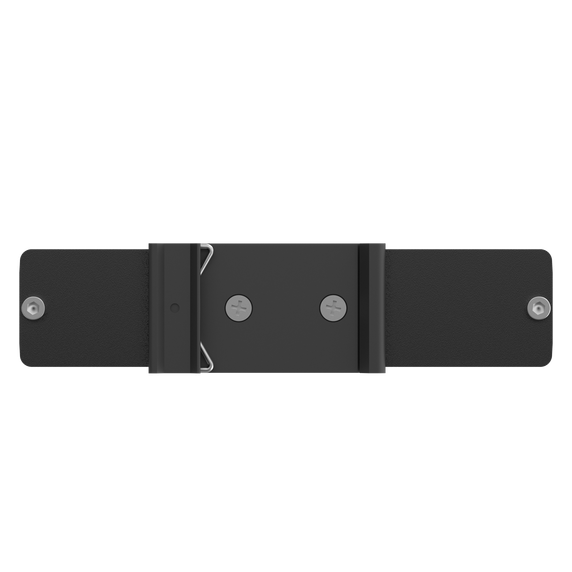

| Features: | PLUG AND PLAY:No additional configuration needed; MOUNTING:Integrated DIN rail bracket and surface mounting options; INDUSTRIAL DESIGN:Anodized aluminum housing and panels |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 2048 bytes |
| 10/100BASE-T Ports: | 5 |
| Interfaces: | 5 x ETH port, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x ETH port, 10/100 Mbps |
| 10/100BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 80.5 Mm |
| Height: | 27.4 Mm |
| Special Feature | |
| Min Operating Temperature: | -40 Degree Celsius |
| Max Operating Temperature: | 75 Degree Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW010 |
| Form Factor: | DIN-rail |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LED Indicators |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 0.9 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Features: | PLUG AND PLAY:No additional configuration needed; MOUNTING:Integrated DIN rail bracket and surface mounting options; INDUSTRIAL DESIGN:Anodized aluminum housing and panels |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 2048 bytes |
| 10/100BASE-T Ports: | 5 |
| Interfaces: | 5 x ETH port, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x ETH port, 10/100 Mbps |
| 10/100BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 80.5 Mm |
| Height: | 27.4 Mm |
| Special Feature | |
| Min Operating Temperature: | -40 Degree Celsius |
| Max Operating Temperature: | 75 Degree Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW010 Datasheet | |
