Teltonika Networks

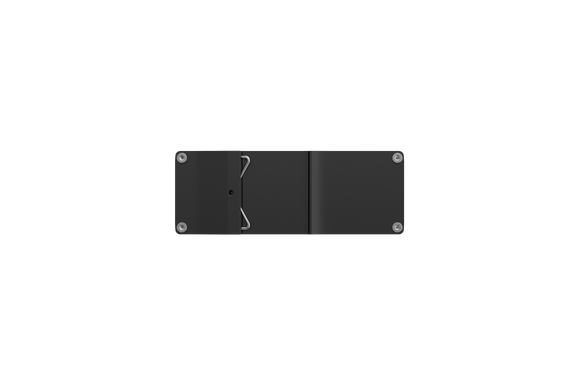

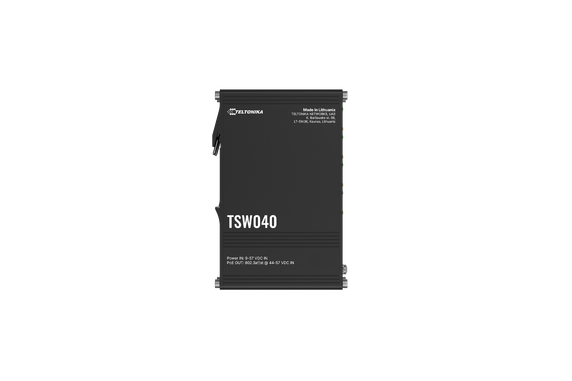

Teltonika Networks 14758051 TSW040 PoE+ Switch 8 10/100 ports
Product Code:
14758051
Manufacturer Part Number (MPN):
TSW040000000
UPC:
4779051841448
Condition:
New
Weight:
0.28 KGS
Width:
11.31
(cm)
Height:
4.12
(cm)
Depth:
7.46
(cm)
$67.00
The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW040 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 0.28 Kg |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW040 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 8 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100BASE-T Ports: | 8 |
| Interfaces: | 10/100 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100 Mbps RJ45 |
| 10/100BASE-T Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 74.6 Mm |
| Height: | 41.2 Mm |
| Weight: | 0.28 Kg |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW040 Datasheet | |
