Zoom the image with the mouse
Teltonika Networks

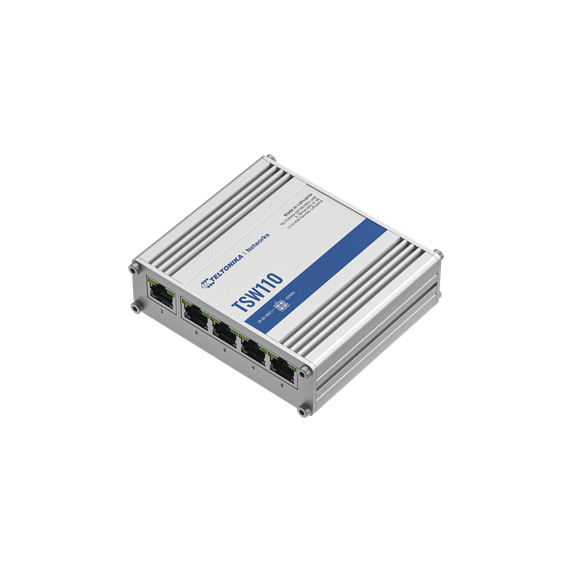

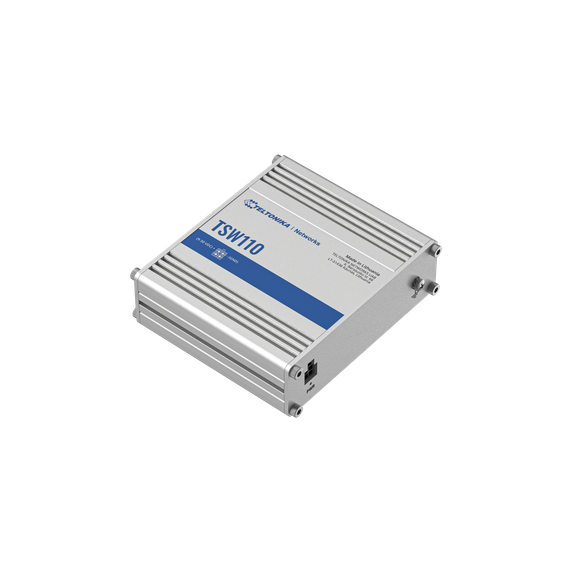

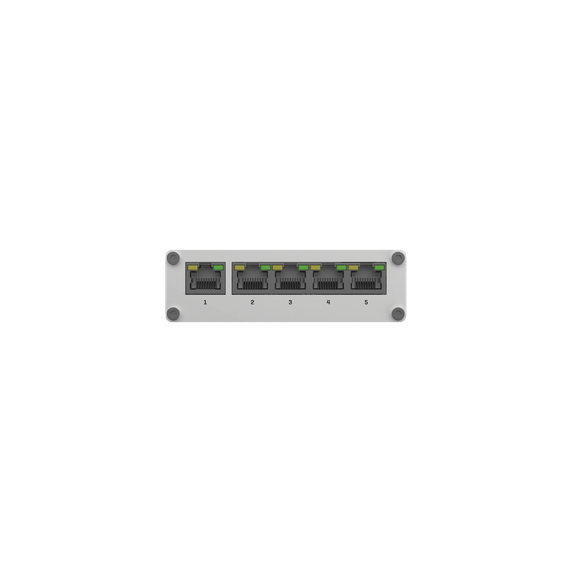

Teltonika Networks 14758025 TSW110 Switch 5 GbE ports
Product Code:
14758025
Manufacturer Part Number (MPN):
TSW110000010
UPC:
4779027312958
Condition:
New
Weight:
0.23 KGS
Width:
10.00
(cm)
Height:
3.00
(cm)
Depth:
8.50
(cm)
$61.00
TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW110 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2 |
| Max Power Consumption: | 1.8 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 100 Mm |
| Depth: | 85 Mm |
| Height: | 30 Mm |
| Weight: | 227 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW110 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2 |
| Max Power Consumption: | 1.8 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 100 Mm |
| Depth: | 85 Mm |
| Height: | 30 Mm |
| Weight: | 227 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW110 Datasheet | |
