Teltonika Networks

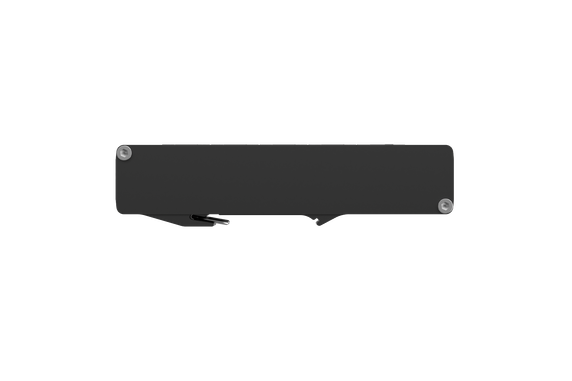

Teltonika Networks 15723762 TSF000 PoE+ Flat Industrial Switch 5 x 100 ports
Product Code:
15723762
Manufacturer Part Number (MPN):
TSF000000000
UPC:
4779051846979
Condition:
New
Weight:
0.15 KGS
Width:
11.30
(cm)
Height:
2.80
(cm)
Depth:
5.00
(cm)
$49.00
The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSF000 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3x, 802.3az, 802.3p 802.3Q |
| Power Consumption Operational: | 1 Watt |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 121 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Interfaces: | 5 x ETH ports, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x ETH ports, 10/100 Mbps |
| Dimensions&Miscellaneous | |
| Width: | 113 Mm |
| Depth: | 50 Mm |
| Height: | 28 Mm |
| Weight: | 142 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSF000 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LEDs |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3x, 802.3az, 802.3p 802.3Q |
| Power Consumption Operational: | 1 Watt |
| Max Power Consumption: | 1.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 121 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Interfaces: | 5 x ETH ports, 10/100 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x ETH ports, 10/100 Mbps |
| Dimensions&Miscellaneous | |
| Width: | 113 Mm |
| Depth: | 50 Mm |
| Height: | 28 Mm |
| Weight: | 142 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSF000 Datasheet | |
