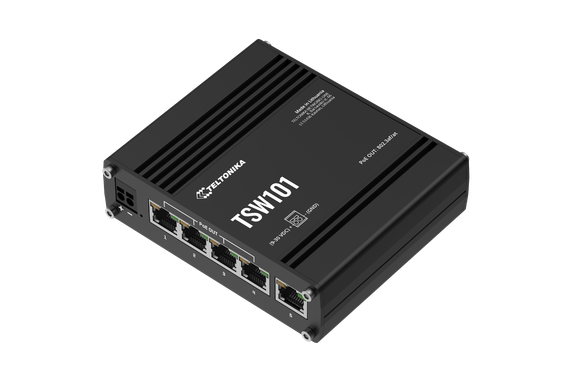

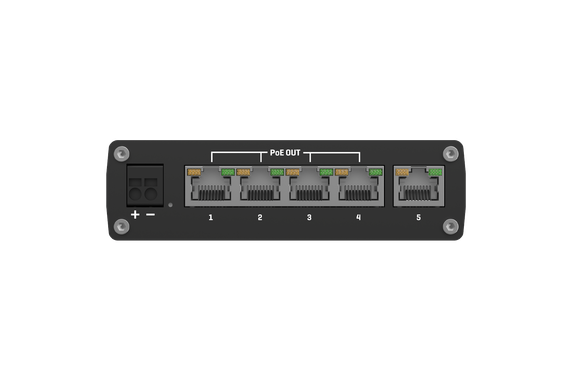

Teltonika Networks 14758052 TSW101 PoE+ Automotive Switch 5 GbE ports
Product Code:
14758052
Condition:
New
Weight:
0.39 KGS
Width:
11.50
(cm)
Height:
3.20
(cm)
Depth:
9.50
(cm)
$81.00
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW101 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2.31 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 60 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 95 Mm |
| Height: | 32 Mm |
| Weight: | 384 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW101 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2.31 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 60 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 95 Mm |
| Height: | 32 Mm |
| Weight: | 384 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW101 Datasheet | |
