Teltonika Networks

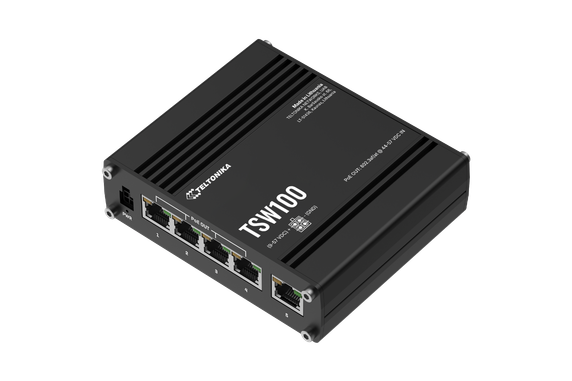

Teltonika Networks 14907204 TSW100 5 Port Unmanaged Switch with US PSU
Product Code:
14907204
Manufacturer Part Number (MPN):
TSW100010010
UPC:
4779027312828
Condition:
New
Weight:
0.35 KGS
Width:
11.50
(cm)
Height:
3.52
(cm)
Depth:
10.12
(cm)
$89.00
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW100 PoE+ Switch |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Networking Compliant Standards: | IEEE 802.3i, IEEE 802.3u. IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 120 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 101.2 Mm |
| Height: | 32.2 Mm |
| Weight: | 350 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW100 PoE+ Switch |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Networking Compliant Standards: | IEEE 802.3i, IEEE 802.3u. IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 120 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps |
| Interfaces / Ports | |
| Interfaces: | 5 x RJ45 ports, 10/100/1000 Mbps |
| Dimensions&Miscellaneous | |
| Width: | 115 Mm |
| Depth: | 101.2 Mm |
| Height: | 32.2 Mm |
| Weight: | 350 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW100 Datasheet | |
