Wilson Electronics

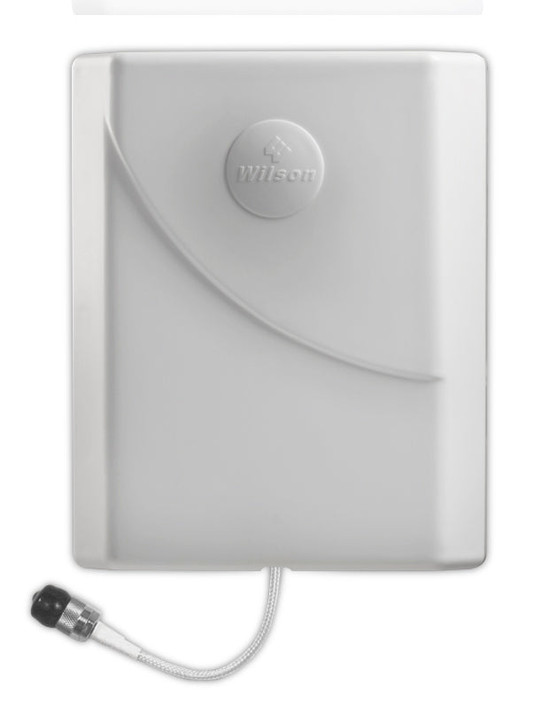

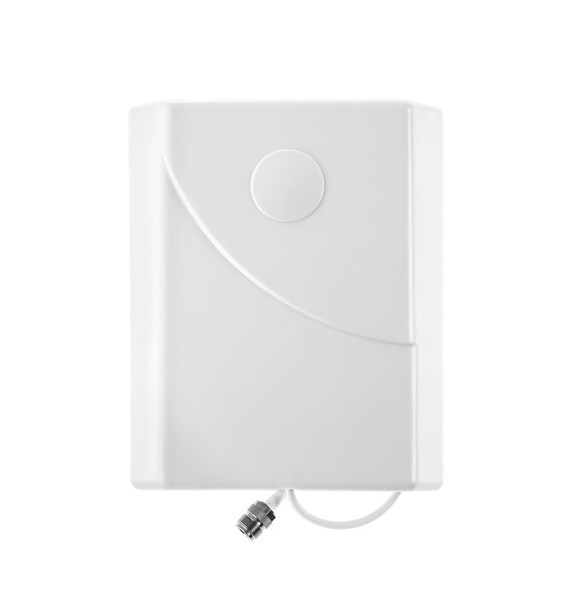

Wilson Electronics 9569795 Wide-Band Panel Antenna
Product Code:
9569795
Manufacturer Part Number (MPN):
311135 | 311155
UPC:
811815023555
Condition:
New
Weight:
3.11 KGS
Width:
21.00
(cm)
Height:
4.39
(cm)
Depth:
18.01
(cm)
$84.99
The Wilson Wide-Band Panel Antenna series, including models 311135 and 311155, offers a powerful and directional indoor antenna solution, designed to enhance cellular reception within buildings. With its sleek and discreet white panel design, this antenna is perfect for wall mounting in various indoor settings, improving connectivity and network reliability.
- Dimensions: 8 x 7 x 2 inches, compact and unobtrusive for indoor use.
- Color: White, easily blending into indoor environments without detracting from décor.
- Antenna Type: Directional, focusing the signal in a specific direction for increased signal strength and coverage.
- Mounting: Includes hardware for wall mounting, allowing for optimal placement and signal distribution.
Whether you are dealing with poor cellular reception in your home or office, the Wilson Wide-Band Panel Antenna models provide an effective solution, boosting signal strength and ensuring stable and reliable communication.
| SPECIFICATIONS | |
| Warranty | 2 Years |
| Impedance | 50 ohm |
| Gain (Up/Down) | 8dB |
| Antenna Connector | N-Female |
| Antenna Polarization | Vertical |
| Antenna Beamwidth - Horizontal | 70 / 60º |
| Antenna Beamwidth - Vertical | 50/45º |
| Antenna Ground Plane | Built-In Ground Plane |
| Number of Antenna Elements | N/A |
| Antenna signal Pattern | Directional |
| Dimensions | 8.27 x 7.09 x 1.73 |
| Specific Frequencies Supported | 698-716 MHz, 776-787 MHz, 824-849 MHz, 1710-1755 MHz, 1850-1995 MHz |
5 customers are viewing this product
Details
The Wilson Wide-Band Panel Antenna series, including models 311135 and 311155, offers a powerful and directional indoor antenna solution, designed to enhance cellular reception within buildings. With its sleek and discreet white panel design, this antenna is perfect for wall mounting in various indoor settings, improving connectivity and network reliability.
- Dimensions: 8 x 7 x 2 inches, compact and unobtrusive for indoor use.
- Color: White, easily blending into indoor environments without detracting from décor.
- Antenna Type: Directional, focusing the signal in a specific direction for increased signal strength and coverage.
- Mounting: Includes hardware for wall mounting, allowing for optimal placement and signal distribution.
Whether you are dealing with poor cellular reception in your home or office, the Wilson Wide-Band Panel Antenna models provide an effective solution, boosting signal strength and ensuring stable and reliable communication.
| SPECIFICATIONS | |
| Warranty | 2 Years |
| Impedance | 50 ohm |
| Gain (Up/Down) | 8dB |
| Antenna Connector | N-Female |
| Antenna Polarization | Vertical |
| Antenna Beamwidth - Horizontal | 70 / 60º |
| Antenna Beamwidth - Vertical | 50/45º |
| Antenna Ground Plane | Built-In Ground Plane |
| Number of Antenna Elements | N/A |
| Antenna signal Pattern | Directional |
| Dimensions | 8.27 x 7.09 x 1.73 |
| Specific Frequencies Supported | 698-716 MHz, 776-787 MHz, 824-849 MHz, 1710-1755 MHz, 1850-1995 MHz |
