Wilson Electronics

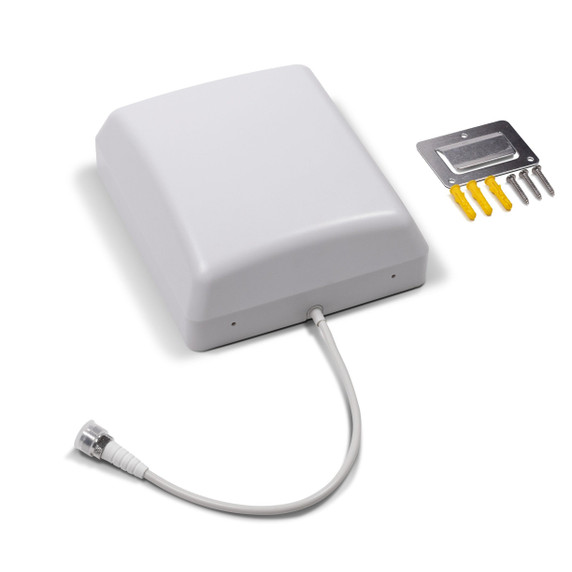

Wilson Electronics 14320657 50 Ohm Wall Mount Panel Antenna, 600-4000MHz
Product Code:
14320657
Condition:
New
Weight:
0.40 KGS
Width:
17.78
(cm)
Height:
5.84
(cm)
Depth:
15.75
(cm)
$99.99
The Wall Mount Panel Antenna is engineered to be a high-performance component in boosting cellular signals. It features a 50 Ohm impedance and supports a broad frequency range from 600 MHz to 4000 MHz. This extensive coverage includes all worldwide cellular bands necessary for various voice and data services, ensuring compatibility with LTE, CDMA, GSM, UMTS, and AWS networks.
- Impedance: 50 Ohm, optimizing signal strength and quality.
- Frequency Range: 600-960 MHz and 1425-4000 MHz, covering all essential cellular bands for comprehensive global service support.
- Applications: Enhances signal reception for a variety of networks including LTE, CDMA, GSM, UMTS, and AWS, providing reliable connectivity for voice and data communications.
| Specifications | |||
| Frequency Band (MHz) | 600-960 | 1425-2700 | 3300-4000 |
| Peak Gain (dBi) | 5 | 8 | 7 |
| VSWR | ≤2.5 | ≤1.8 | ≤1.8 |
| Polarization | Vertical | Vertical | Vertical |
| Front-to-Back Ratio (dB) | ≥8 | ≥15 | ≥11 |
| Half-Power Azimuth Beamwidth (°) | 95 | 65 | 50 |
| Half-Power Elevation Beamwidth (°) | 88 | 60 | 45 |
| Impedance (Ω) | 50 | 50 | 50 |
| Max Power (W) | 50 | 50 | 50 |
5 customers are viewing this product
Details
The Wall Mount Panel Antenna is engineered to be a high-performance component in boosting cellular signals. It features a 50 Ohm impedance and supports a broad frequency range from 600 MHz to 4000 MHz. This extensive coverage includes all worldwide cellular bands necessary for various voice and data services, ensuring compatibility with LTE, CDMA, GSM, UMTS, and AWS networks.
- Impedance: 50 Ohm, optimizing signal strength and quality.
- Frequency Range: 600-960 MHz and 1425-4000 MHz, covering all essential cellular bands for comprehensive global service support.
- Applications: Enhances signal reception for a variety of networks including LTE, CDMA, GSM, UMTS, and AWS, providing reliable connectivity for voice and data communications.
| Specifications | |||
| Frequency Band (MHz) | 600-960 | 1425-2700 | 3300-4000 |
| Peak Gain (dBi) | 5 | 8 | 7 |
| VSWR | ≤2.5 | ≤1.8 | ≤1.8 |
| Polarization | Vertical | Vertical | Vertical |
| Front-to-Back Ratio (dB) | ≥8 | ≥15 | ≥11 |
| Half-Power Azimuth Beamwidth (°) | 95 | 65 | 50 |
| Half-Power Elevation Beamwidth (°) | 88 | 60 | 45 |
| Impedance (Ω) | 50 | 50 | 50 |
| Max Power (W) | 50 | 50 | 50 |
