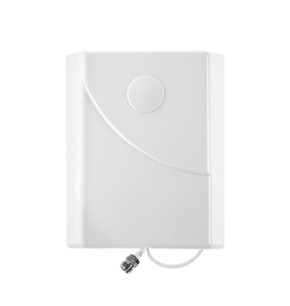

Wilson Electronics 6627016 Wide-Band Directional Antenna

The Wilson Wide-Band Directional Antenna models 314411 and 314475 offer enhanced cellular connectivity across all worldwide cellular bands for voice and 4G data. These high-performance antennas are designed for building exterior installation, directing at cell towers to maximize signal reception. Featuring a compact and UV stable white sealed radome, these antennas are rugged, weatherproof, and ideal for all weather conditions. They are the successors to the older 304411 and 304475 models, offering upgraded technology and improved performance.

• Models: 314411 (50 ohm) and 314475 (75 ohm)
• Replaces: Model 314411 replaces 304411; Model 314475 replaces 304475
• Frequency Bands: 698-814, 814-960, 1695-2180, 2180-2700 MHz
• Maximum Gain: Up to 8.83 dBi
• Impedance: 50 ohm (314411) and 75 ohm (314475)
• Connectors: N-female (314411), F-Female (314475)
• Dimensions: 11.75 x 8.5 x 2.50 inches (300 x 210 x 65 mm)
• Weight: 1.8 lbs (0.8 kg) with bracket
• Includes: Mounting kit with tilt/swivel mast bracket for 1.25” to 2” diameter pipe/mast

These directional antennas are simple to install and come with a two-year warranty, ensuring reliability and satisfaction. Their high efficiency and robust design make them perfect for enhancing cellular signals in challenging environments, improving both voice and data transmission for weBoost cellular repeaters/boosters.
