Wilson Electronics

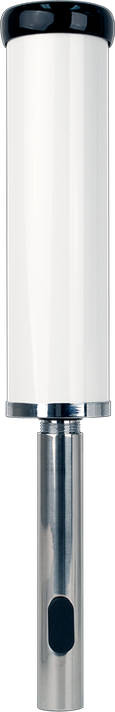

Wilson Electronics 15567412 Wide Band Omni Marine Antenna
Product Code:
15567412
Condition:
New
Weight:
1.14 KGS
$199.99
The Wilson 4G Marine Antenna (304420) is specifically tailored for marine applications, designed to integrate seamlessly into a standard marine mount (not included) on boats, ships, or other marine vehicles. It is an ideal solution for enhancing cellular connectivity across all network types utilized by major North American carriers.
- Comprehensive Network Support: Compatible with 2G, 3G, and 4G LTE networks, ensuring reliable communication on all major cellular carriers in North America.
- Installation Requirements: Intended for use with a standard marine mount, which is not included with the antenna. For those requiring a mount, the Wilson 901119 Marine Antenna Mount is compatible and available separately.
- Included Cable: Comes with a 20 ft white RG-58 cable, facilitating connection to a cellular amplifier and allowing flexible placement on various marine vessels.
- Dedicated Marine Design: Engineered to withstand the demanding conditions of marine environments, offering durable and effective communication enhancements at sea.
| SPECIFICATIONS | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency range (MHZ) | 698-960/1710-2700 |
| Polarization | Vertical |
| Gain(dBi) | 4 |
| Horizontal beam width() | 360 deg |
| Vertaicl beam width() | 60 deg |
| Radiation Pattern | Omni-directional |
| Impedance() | 50 |
| VSWR | ≤1.8 |
| Maximum input power (W) | 100 |
| Lightning Protection | DC Ground |
| MECHANICAL SPECIFICATIONS | |
| Model | 304420 |
| Color | White |
| Connector | SMA Male |
| Cable | 20 feet, White RG-58, N-male to SMA-male |
| Dimensions (in/mm) | 2.5 x 9.8" / 63 x 250 mm |
| Radome material | UV Resistant PVC |
| Rated wind velocity (mph/kph) | 130/210 |
| Operating temperature(°C/F) | -40 to 158 deg F/-40 to 70 deg C |
| Humidity | 100% |
| Mounting | Standard marine mount: 1" x 14 thread |
| RoHS | Compliant |
5 customers are viewing this product
Details
The Wilson 4G Marine Antenna (304420) is specifically tailored for marine applications, designed to integrate seamlessly into a standard marine mount (not included) on boats, ships, or other marine vehicles. It is an ideal solution for enhancing cellular connectivity across all network types utilized by major North American carriers.
- Comprehensive Network Support: Compatible with 2G, 3G, and 4G LTE networks, ensuring reliable communication on all major cellular carriers in North America.
- Installation Requirements: Intended for use with a standard marine mount, which is not included with the antenna. For those requiring a mount, the Wilson 901119 Marine Antenna Mount is compatible and available separately.
- Included Cable: Comes with a 20 ft white RG-58 cable, facilitating connection to a cellular amplifier and allowing flexible placement on various marine vessels.
- Dedicated Marine Design: Engineered to withstand the demanding conditions of marine environments, offering durable and effective communication enhancements at sea.
| SPECIFICATIONS | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency range (MHZ) | 698-960/1710-2700 |
| Polarization | Vertical |
| Gain(dBi) | 4 |
| Horizontal beam width() | 360 deg |
| Vertaicl beam width() | 60 deg |
| Radiation Pattern | Omni-directional |
| Impedance() | 50 |
| VSWR | ≤1.8 |
| Maximum input power (W) | 100 |
| Lightning Protection | DC Ground |
| MECHANICAL SPECIFICATIONS | |
| Model | 304420 |
| Color | White |
| Connector | SMA Male |
| Cable | 20 feet, White RG-58, N-male to SMA-male |
| Dimensions (in/mm) | 2.5 x 9.8" / 63 x 250 mm |
| Radome material | UV Resistant PVC |
| Rated wind velocity (mph/kph) | 130/210 |
| Operating temperature(°C/F) | -40 to 158 deg F/-40 to 70 deg C |
| Humidity | 100% |
| Mounting | Standard marine mount: 1" x 14 thread |
| RoHS | Compliant |
