Wilson Electronics

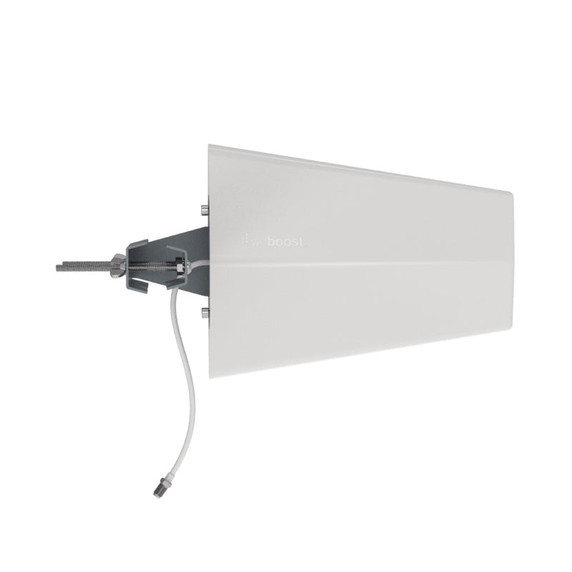

Wilson Electronics 9597242 75 ohm Home Outside Yagi Directional Antenna
Product Code:
9597242
Manufacturer Part Number (MPN):
314445
UPC:
811815029977
Condition:
New
Weight:
0.92 KGS
Width:
36.19
(cm)
Height:
10.16
(cm)
Depth:
23.17
(cm)
$99.99

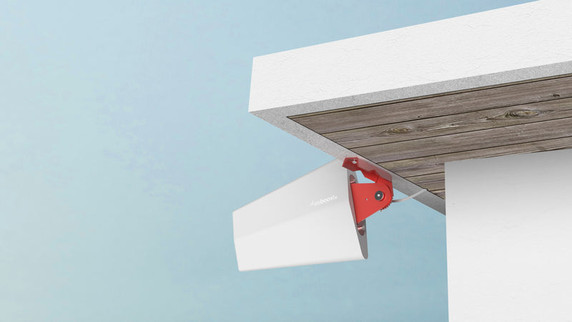

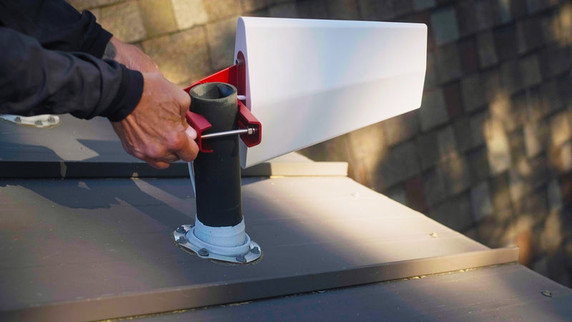

The Home Outside Antenna enhances your home's network coverage by directing the signal precisely where it's needed most. This 75 ohm Yagi directional antenna features an F-Female connector, ensuring compatibility with a wide range of signal boosters, including any 75 ohm system. Its versatility shines with multiple mounting options; you can install it on a vent pipe, attach it directly to a wall, or secure it under an eave to best suit your home's layout.
Features:
- Works on all worldwide cellular bands for voice and data: LTE/CDMA/GSM/UMTS/AWS
- High performance for weBoost cellular repeater/boosters
- Designed for building exterior installation; direct at cell tower for best signal
- High efficiency and compact design
- UV stable white sealed radome
- Rugged and waterproof for all weather operation
- Simple install kit with tilt/swivel bracket for 1.0” to 3” diameter pipe/mast
- 2-year warranty
| SPECIFICATIONS | |||||
| Frequency Band (MHz) | 698–806 | 806–960 | 1710–1880 | 1900–2200 | 2200–2700 |
| Peak Gain (dBi) | 7.2 | 6.9 | 8.9 | 8.4 | 9.2 |
| Efficiency (%) | 93 | 84.5 | 82.8 | 80.1 | 82.6 |
| VSWR | <1.5:1 | <1.5:1 | |||
| Polarization | Vertical | ||||
| Half-Power Azimuth Beamwidth (°) | 118 | 121 | 101 | 103 | 79 |
| Half-Power Elevation Beamwidth (°) | 68 | 71 | 65 | 62 | 54 |
| Front-to-Back Ratio (dB) | >12 | >15 | >12 | >12 | >12 |
| Impedance (Ω) | 75 | ||||
| Maximum Power (W) | 50 | ||||
