Teltonika Networks

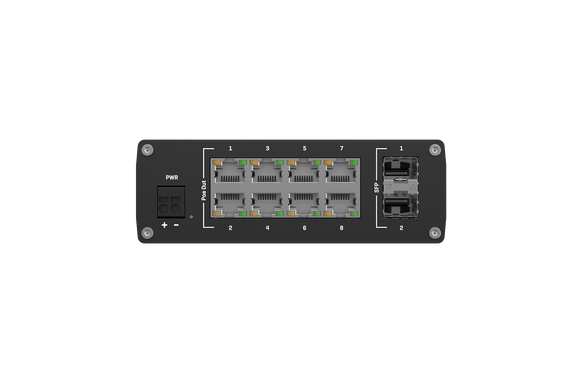

Teltonika Networks 14758027 TSW200 PoE+ Switch 8 GbE, 2 SFP ports, without PSU
Product Code:
14758027
Manufacturer Part Number (MPN):
TSW2000000B0
UPC:
4779051843671
Condition:
New
Weight:
0.52 KGS
Width:
13.20
(cm)
Height:
4.42
(cm)
Depth:
9.51
(cm)
$109.00
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW200 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 10 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 5.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 2 |
| Interfaces: | 10/100/1000 Mbps RJ45, SFP |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45, SFP |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 2 |
| Dimensions&Miscellaneous | |
| Width: | 132 Mm |
| Depth: | 95.1 Mm |
| Height: | 44.2 Mm |
| Weight: | 1.14 lbs. |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW200 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 10 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 5.5 Watt |
| Power / Voltage Required: | 7 - 57 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| PoE Power Consumption: | 240 W |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 2 |
| Interfaces: | 10/100/1000 Mbps RJ45, SFP |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45, SFP |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 2 |
| Dimensions&Miscellaneous | |
| Width: | 132 Mm |
| Depth: | 95.1 Mm |
| Height: | 44.2 Mm |
| Weight: | 1.14 lbs. |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW200 Datasheet | |
