Teltonika Networks
Teltonika Networks 14758026 TSW114 DIN Rail Switch 5 GbE ports
Product Code:
14758026
Manufacturer Part Number (MPN):
TSW114000000
UPC:
4779051840298
Condition:
New
Weight:
0.18 KGS
Width:
11.31
(cm)
Height:
2.74
(cm)
Depth:
8.05
(cm)
$55.00

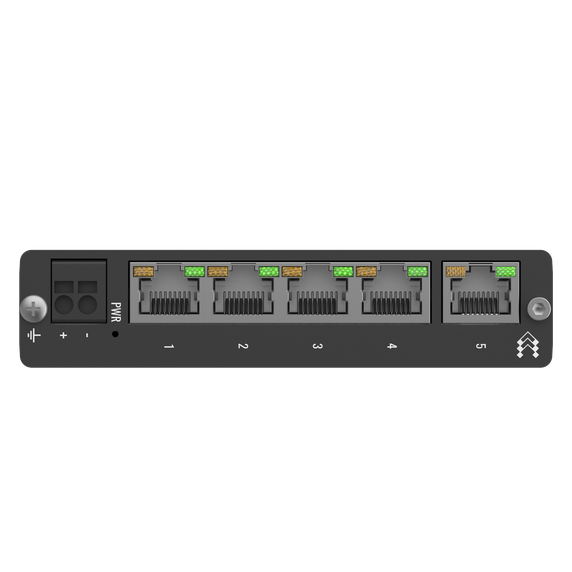

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW114 |
| Form Factor: | DIN-rail |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2.3 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 80.5 Mm |
| Height: | 27.4 Mm |
| Weight: | 174 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | TSW114 |
| Form Factor: | DIN-rail |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 5 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2.3 Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Network | |
| Power Over Ethernet (PoE) Support: | Y |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| 10/100/1000BASE-T Ports: | 5 |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| Interfaces / Ports | |
| Interfaces: | 10/100/1000 Mbps RJ45 |
| 10/100/1000BASE-T Ports: | 5 |
| Dimensions&Miscellaneous | |
| Width: | 113.1 Mm |
| Depth: | 80.5 Mm |
| Height: | 27.4 Mm |
| Weight: | 174 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| RoHS: | Y |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks TSW114 Datasheet | |
