RF-Design FiberLinkplus not redundant Standard RF-over-Fiber

• 1:1 redundant dual power supply

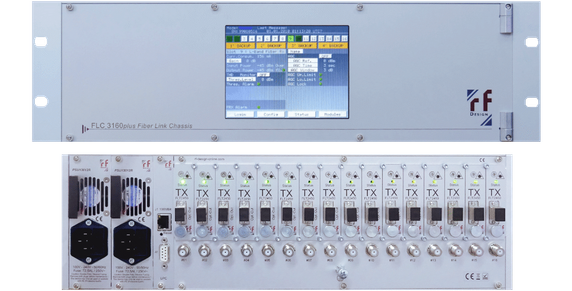

The FiberLinkplus RF-over-Fiber system for non-redundant optical transmission of RF signals is available in sizes of 1RU/19" and 3RU/19" rack mount design. It is perfectly suited for flexible and high quality optical transmission of up to 16 RF signals (10MHz, IF, L-Band, Extended L-Band and broadband) over a distance of up to 20 km.

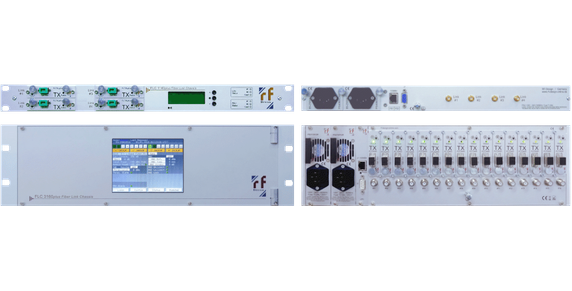

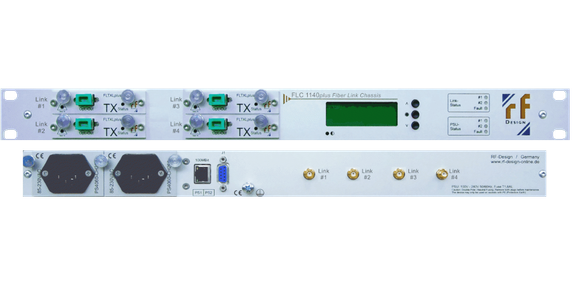

The 1RU/19" chassis variants hold up to 4 optical TX/RX modules while the 3RU/19" chassis can be populated with up to 16 TX/RX modules.
All available chassis are designed to allow mixed population with TX/RX modules within the same chassis, while the chassis are equipped with corresponding RF ports (50Ohm or 75Ohm), which are used either as input or output port.
Additionally, this non-redundant RF-over-Fiber system comes with beneficial features such as Laser/Link monitoring, status LED ́s at any TX/RX module, variable gain control, RF power monitoring, switchable LNB-supply, hot-swappable TX/RX modules and 1:1
redundant dual power supply. Configuration and monitoring is possible via the front-panel LC-
Display or 5,7" touchscreen while remote configuration is available via its Ethernet-Interface (WebGUI, SNMP). This professional RF-over-Fiber system stands for perfect RF
performance as well as stable signal distribution and is perfectly suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.
