Poynting SWIRL-4-CPE X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array, 617 - 6000MHz, 6dBi

Poynting Antennas proudly introduces the SWIRL antenna and CPE solution, designed for both maritime and mobility applications. The SWIRL series features two versatile models: the SWIRL-8 and the SWIRL-4. The SWIRL-8 includes 8x cross-polarized cellular antennas, covering frequencies from 617 to 6000 MHz with a peak gain of 6 dBi, 4x dual-band Wi-Fi antennas (2.4 GHz and 5 to 7.2 GHz), and 1x dual-band GNSS antenna for L1 and L5 constellations. The SWIRL-4 provides 4x cross-polarized cellular antennas, 2x dual-band Wi-Fi antennas, and 1x dual-band GNSS antenna.

The SWIRL antenna solution features a compact design, measuring 382 mm in diameter and 127 mm in height. It has been engineered with IK08 and IP69K ratings to ensure durability in harsh and challenging environments. While initially developed for maritime use, the SWIRL is also ideal for a wide range of applications, including mobility and fixed wireless access (FWA), making it a highly adaptable choice for diverse connectivity needs.

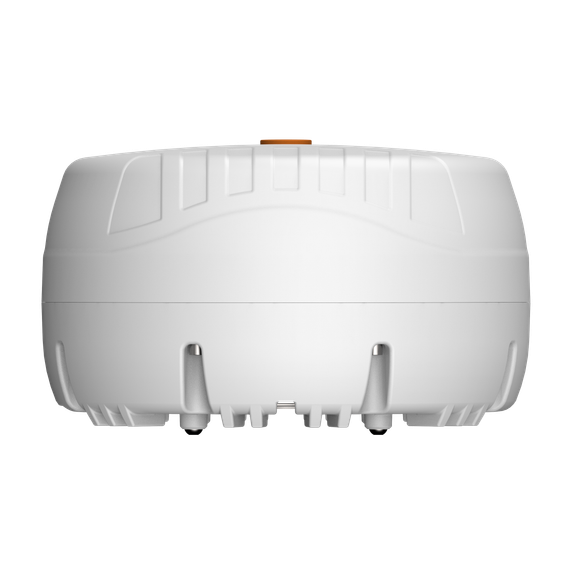

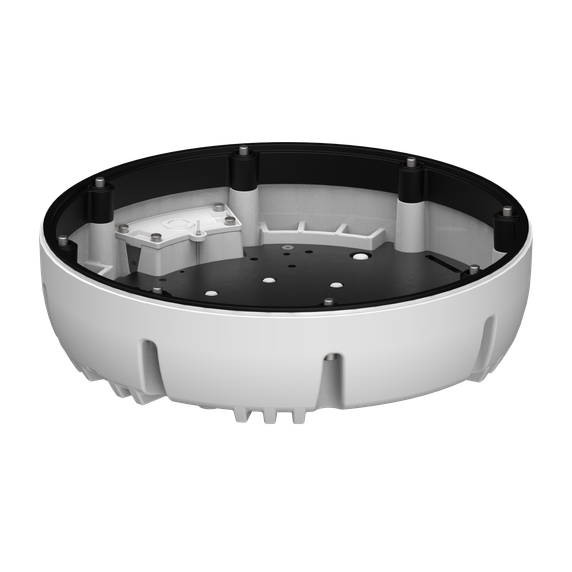

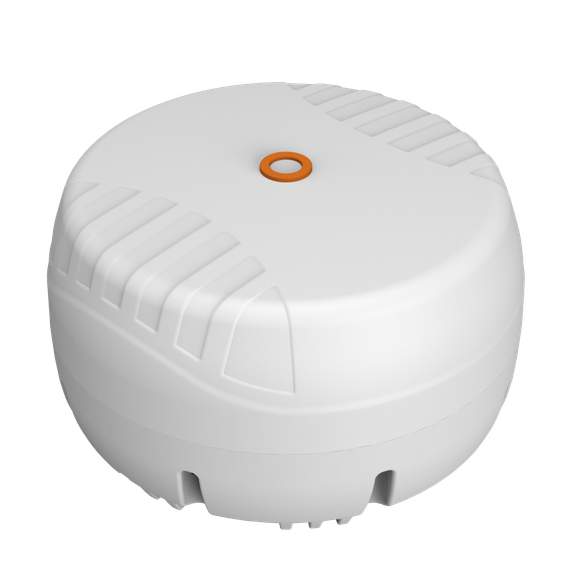

Furthermore, the SWIRL can be upgraded into a Customer Premises Equipment (CPE) device by adding the SWIRL-BASE. This cast aluminium base has been purposefully designed to house 5G routers, with available enclosure sizes of 231 x 193 x 50 mm or 293.5 x 148.5 x 50 mm. The integration of the router into the base minimizes coaxial cable runs, significantly enhancing performance by reducing signal loss. As a result, the SWIRL CPE solution delivers optimized connectivity with increased reliability. Measuring 382 mm in diameter and 224 mm in height when combined with the SWIRL-BASE, the complete CPE solution remains compact and robust. Experience cutting-edge connectivity with Poynting's SWIRL antenna and CPE solutions, engineered for seamless integration and superior performance in the most demanding environments.

Features

• Wide Frequency Range: Cellular antennas (617 to 6000 MHz) and dual-band Wi-Fi (2.4 GHz and 5 to 7.2 GHz).
• High Gain Performance with a peak gain of 6dBi for robust signal strength.
• Durable Construction: IK08 and IP69K ratings for protection against impacts and environmental factors.
• CPE Transformation: Compatible with SWIRL-BASE for integrating 5G routers, enhancing performance with short coaxial cable run
