Poynting

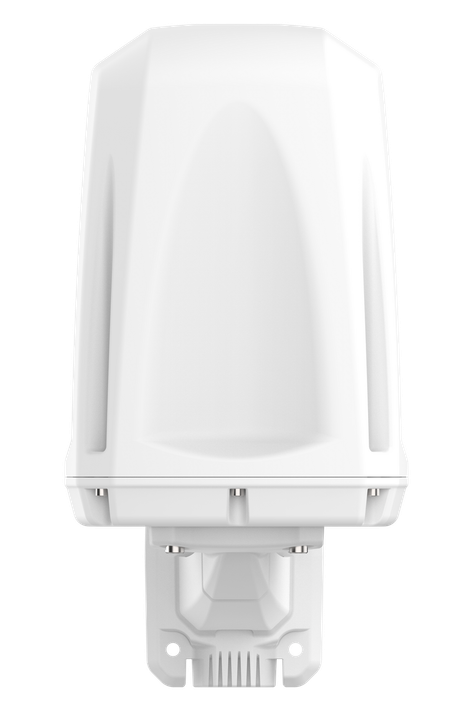

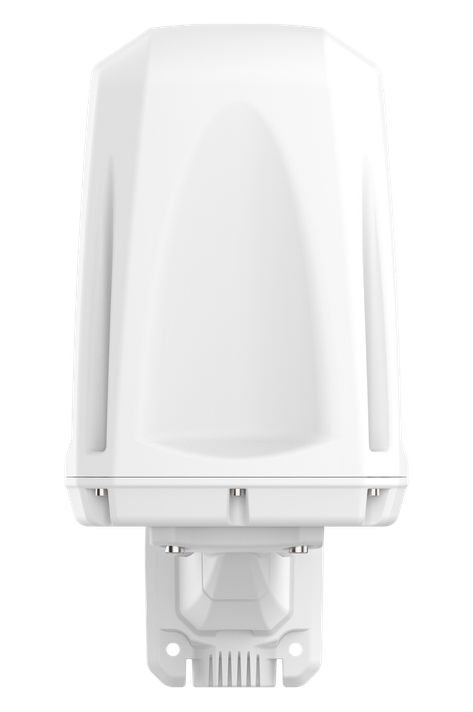

Poynting EPNT-4 X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE
Product Code:
A-EPNT-0004-V1
Condition:
New
Weight:
2.65 KGS
Width:
28.00
(cm)
Height:
19.50
(cm)
Depth:
41.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The EPNT-4 is Poynting’s newly added omni-directional, customer-premises equipment (CPE). The EPNT-4 offers a variety of antennas in one package, such as 4x4 5G/4G MIMO, 4x4 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/4G antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/4G bands with excellent gain across all frequencies, enhancing the 5G/4G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual-band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 2.2 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput.
The EPNT-4 is also fully saltwater protected, so that it can be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV stable ASA radome material. The enclosure also offers a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weatherproof with an IP67 & IK10 rating.
Features
- Wideband cellular coverage from 617 to 4200 MHz, with up to 4x4 MIMO
- 2x2 MIMO or 4x4 MIMO dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
- Cleverly designed decorrelated antennas give superior MIMO performance in both cellular and Wi-Fi bands
- Includes high-performance GPS/GLONASS antenna
- Precise mechanical design provides ruggedness, water, and dust resistance (IP67)
- Wall, pole, and surface mountable
- Includes a 316 stainless steel bracket perfect for marine applications
| Antenna Derivatives | |||
| Product Order Code (SKU) | A-EPNT-0004-V1-15 | A-EPNT-0004-V1-17 | A-EPNT-0004-V1-19 |
| Ports | 1 & 2 – 5G/4G 3 & 4 - Wi-Fi 5 – GPS | 1, 2, 3 & 4 – 5G/4G 5 & 6 - Wi-Fi 7 - GPS | 1, 2, 3 & 4 – 5G/4G 5, 6, 7 & 8 - Wi-Fi 9 - GPS |
| SISO / MIMO | 2x2 MIMO – 5G/4G 2x2 MIMO – Wi-Fi | 4x4 MIMO – 5G/4G 2x2 MIMO – Wi-Fi | 4x4 MIMO – 5G/4G 4x4 MIMO – Wi-Fi |
| Coax Cable Type | RTK-031 – 5G/4G, Wi-Fi & GPS | RTK-031 – 5G/4G, Wi-Fi & GPS | RTK-031 – 5G/4G, Wi-Fi & GPS |
| Coax Cable Length | 150 mm – 5G/4G, Wi-Fi & GPS | 150 mm - 5G/4G, Wi-Fi & GPS | 150 mm - 5G/4G, Wi-Fi & GPS |
| Connector Type | RA-SMA* (M) – 5G/4G, & GPS RA-RP-SMA* (M)- Wi-Fi | RA-SMA* (M) – 5G/4G & GPS RA-RP-SMA* (M)- Wi-Fi | RA-SMA* (M) – 5G/4G & GPS RA-RP-SMA* (M)- Wi-Fi |
| Weight | 1.175 kg | 1.19 kg | 1.2 kg |
| Packaged Weight | 2.19 kg | 2.21 kg | 2.65 kg |
| EAN | 6.00971E+12 | 6.00971E+12 | 6.00971E+12 |
| *RA-SMA: Right Angle/90° SMA *RA-RP-SMA: Right Angle/90° Reverse Polarity SMA *The coax cables & connectors are factory mounted to the antenna | |||
5 customers are viewing this product
Details
The EPNT-4 is Poynting’s newly added omni-directional, customer-premises equipment (CPE). The EPNT-4 offers a variety of antennas in one package, such as 4x4 5G/4G MIMO, 4x4 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/4G antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/4G bands with excellent gain across all frequencies, enhancing the 5G/4G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual-band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 2.2 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput.
The EPNT-4 is also fully saltwater protected, so that it can be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV stable ASA radome material. The enclosure also offers a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weatherproof with an IP67 & IK10 rating.
Features
- Wideband cellular coverage from 617 to 4200 MHz, with up to 4x4 MIMO
- 2x2 MIMO or 4x4 MIMO dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
- Cleverly designed decorrelated antennas give superior MIMO performance in both cellular and Wi-Fi bands
- Includes high-performance GPS/GLONASS antenna
- Precise mechanical design provides ruggedness, water, and dust resistance (IP67)
- Wall, pole, and surface mountable
- Includes a 316 stainless steel bracket perfect for marine applications
| Antenna Derivatives | |||
| Product Order Code (SKU) | A-EPNT-0004-V1-15 | A-EPNT-0004-V1-17 | A-EPNT-0004-V1-19 |
| Ports | 1 & 2 – 5G/4G 3 & 4 - Wi-Fi 5 – GPS | 1, 2, 3 & 4 – 5G/4G 5 & 6 - Wi-Fi 7 - GPS | 1, 2, 3 & 4 – 5G/4G 5, 6, 7 & 8 - Wi-Fi 9 - GPS |
| SISO / MIMO | 2x2 MIMO – 5G/4G 2x2 MIMO – Wi-Fi | 4x4 MIMO – 5G/4G 2x2 MIMO – Wi-Fi | 4x4 MIMO – 5G/4G 4x4 MIMO – Wi-Fi |
| Coax Cable Type | RTK-031 – 5G/4G, Wi-Fi & GPS | RTK-031 – 5G/4G, Wi-Fi & GPS | RTK-031 – 5G/4G, Wi-Fi & GPS |
| Coax Cable Length | 150 mm – 5G/4G, Wi-Fi & GPS | 150 mm - 5G/4G, Wi-Fi & GPS | 150 mm - 5G/4G, Wi-Fi & GPS |
| Connector Type | RA-SMA* (M) – 5G/4G, & GPS RA-RP-SMA* (M)- Wi-Fi | RA-SMA* (M) – 5G/4G & GPS RA-RP-SMA* (M)- Wi-Fi | RA-SMA* (M) – 5G/4G & GPS RA-RP-SMA* (M)- Wi-Fi |
| Weight | 1.175 kg | 1.19 kg | 1.2 kg |
| Packaged Weight | 2.19 kg | 2.21 kg | 2.65 kg |
| EAN | 6.00971E+12 | 6.00971E+12 | 6.00971E+12 |
| *RA-SMA: Right Angle/90° SMA *RA-RP-SMA: Right Angle/90° Reverse Polarity SMA *The coax cables & connectors are factory mounted to the antenna | |||
