Poynting
Poynting SWIRL-4-CPE X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array, 617 - 6000MHz, 6dBi
$1,098.00 - $1,298.00
Zoom the image with the mouse
Poynting

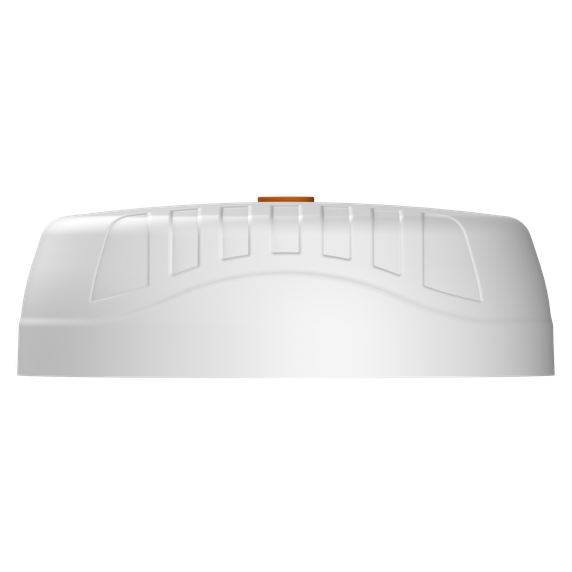

Poynting SWIRL-4 X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array
Product Code:
A-SWIRL-000X-V1-01
Condition:
New
Weight:
0.52 KGS
Width:
45.00
(cm)
Height:
45.00
(cm)
Depth:
18.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Poynting Antennas proudly introduces the SWIRL antenna solution, designed for both maritime and mobility applications. The SWIRL series includes two versatile models: the SWIRL-8 and the SWIRL-4. The SWIRL-8 features 8x cross-polarised cellular antennas, covering frequencies from 617 to 6000 MHz with a peak gain of 6dBi, 4x dual-band Wi-Fi antennas (2.4 GHz and 5 to 7.2 GHz), and 1x dual-band GNSS antenna for L1 and L5 constellations. The SWIRL-4 offers 4x cross-polarised cellular antennas, 2x dual-band Wi-Fi antennas, and 1x dual-band GNSS antenna.
The SWIRL antenna boasts a compact design, measuring 382 mm in diameter and 127 mm in height. It has IK08 and IP69K ratings, ensuring durability in harsh environments. While the SWIRL is primarily aimed at maritime applications, it is also suitable for various other applications, such as mobility and fixed wireless access (FWA), making it a highly adaptable choice for diverse connectivity needs.
Experience the future of connectivity with Poynting's SWIRL antenna solution, engineered for seamless integration and superior performance in demanding environments.
Features
- Wide Frequency Range: Cellular antennas (617 to 6000 MHz) and dual-band Wi-Fi (2.4 GHz and 5 to 7.2 GHz).
- High Gain Performance with a peak gain of 6dBi for robust signal strength.
- Durable Construction: IK08 and IP69K ratings for protection against impacts and environmental factors.
- CPE Transformation: Compatible with SWIRL-BASE for integrating 5G routers, enhancing performance with short coaxial cable run
5 customers are viewing this product
Details
Poynting Antennas proudly introduces the SWIRL antenna solution, designed for both maritime and mobility applications. The SWIRL series includes two versatile models: the SWIRL-8 and the SWIRL-4. The SWIRL-8 features 8x cross-polarised cellular antennas, covering frequencies from 617 to 6000 MHz with a peak gain of 6dBi, 4x dual-band Wi-Fi antennas (2.4 GHz and 5 to 7.2 GHz), and 1x dual-band GNSS antenna for L1 and L5 constellations. The SWIRL-4 offers 4x cross-polarised cellular antennas, 2x dual-band Wi-Fi antennas, and 1x dual-band GNSS antenna.
The SWIRL antenna boasts a compact design, measuring 382 mm in diameter and 127 mm in height. It has IK08 and IP69K ratings, ensuring durability in harsh environments. While the SWIRL is primarily aimed at maritime applications, it is also suitable for various other applications, such as mobility and fixed wireless access (FWA), making it a highly adaptable choice for diverse connectivity needs.
Experience the future of connectivity with Poynting's SWIRL antenna solution, engineered for seamless integration and superior performance in demanding environments.
Features
- Wide Frequency Range: Cellular antennas (617 to 6000 MHz) and dual-band Wi-Fi (2.4 GHz and 5 to 7.2 GHz).
- High Gain Performance with a peak gain of 6dBi for robust signal strength.
- Durable Construction: IK08 and IP69K ratings for protection against impacts and environmental factors.
- CPE Transformation: Compatible with SWIRL-BASE for integrating 5G routers, enhancing performance with short coaxial cable run
Download
| Download Name | |
| Poynting SWIRL-4 Datasheet | |
| Poynting SWIRL-4 User Guide | |
