Poynting WaveHunter V4 X-Polarised, High Gain, Multi-Directional 5G/LTE, 24x24 Multi MIMO Antenna Array

Poynting Antennas introduces its all-new antenna enclosure range, the WaveHunter™ series. The WaveHunter™ enclosure is designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) – just add your own LTE/5G routers and networking equipment. The WaveHunter™ enclosure can accommodate routers up to the size of 450 mm x 280 mm x 110 mm using the available, optional WaveHunter™ brackets. Additional equipment can be added within a stacked customised user supplied frame.

The WaveHunter™ antenna enclosure uses our world renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. The antenna array consists of 12 cross-polarised, high gain, 2x2 MIMO directional antennas arranged in two stacked arrays offset at 60° increments. This provides 360° wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, with a peak gain of 11 dBi, making it ideal for Multi-router LTE & 5G bonded and aggregated deployments. The enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP 69K rating.

Features

• Ultra-wideband coverage from 617- 960 & 1710 - 4200 MHz
• High gain directional antennas, with a peak gain of 11 dBi
• Dual-band Wi-Fi
• Can accommodate up to 6 routers for optimal throughput
• Purpose built antenna for marine and coastal applications
• Weatherproof and water-resistant enclosure (IP 69K)
• UV and saltwater resistant

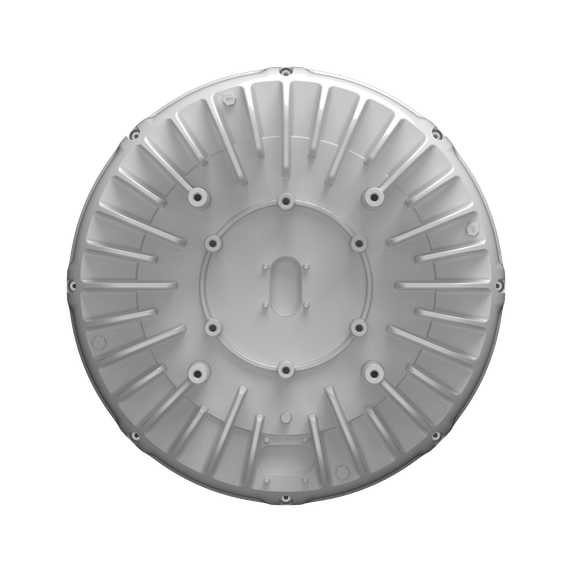

• Aluminium heatsink base with excellent thermal properties for devices integrated within the WaveHunter™
