Poynting

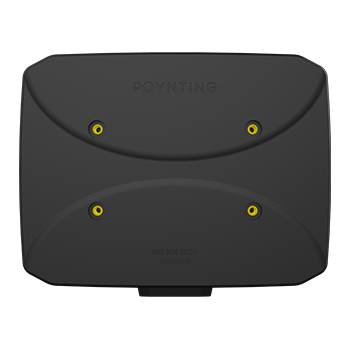

Poynting PANL-631 10-IN-1 Omni-Directional Wideband Panel 5G Antenna 617 – 6000 MHz, 6 dBi, 6 x Cellular, 3 x Wi-Fi & 1 x GNSS
Product Code:
A-PANL-0631-V1-01
Condition:
New
Weight:
1.64 KGS
Width:
38.00
(cm)
Height:
28.00
(cm)
Depth:
7.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Introducing the PANL-631; a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 10-in-1 solution, including 6 × Cellular, 3 × Tri-Band Wi-Fi, and 1 × dual-band active GNSS antenna, which provides exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.
The PANL-631 is an ultra-wideband antenna that covers a broad frequency range from 617 to 6000 MHz. This allows it to be used across different cellular operators and technologies, and it is ready for future cellular technologies up to 6 GHz for 5G applications. The antenna provides an excellent balance between omnidirectionality, pattern diversity, and good radiation abilities at the desired elevation, which is an important criterion, especially for the transportation market.
The three tri-band Wi-Fi antennas offer concurrent 2.4 GHz, 5 GHz, and 6 GHz bands, capable of 802.11n and 802.11ac/ax/be with 3x3 MIMO. This provides complete backward compatibility with older devices while simultaneously offering access to both current high-speed channels and the newest, least congested 6 GHz spectrum for next-generation Wi-Fi 6E/7 devices, ensuring maximum performance, future-proofing, and optimal connectivity across all wireless technologies. Additionally, the inclusion of a dual-band GNSS antenna ensures reliable navigation and precise location tracking, even in challenging environments.
Featuring a low-profile and compact design, the PANL-631 seamlessly blends into any environment, addressing both aesthetic and practical considerations. Its convenient window mount design simplifies installation, allowing for easy attachment to vehicle or building windows through either the included suction cups or adhesive mount. With exceptional GNSS capabilities and wideband performance, the PANL-631 serves as your gateway to unparalleled connectivity across diverse wireless applications.
Features
- 10-in-1 antenna solution; 6 x Cellular, 3 x Wi-Fi, 1 x GNSS
- Ultra-wideband coverage from 617 to 6000 MHz
- 6x6 MIMO cross-polarised antennas for improved results
- Low-profile and rugged mechanical design with an IP65 rating
- Easy to install with adhesive mounting and suction cup options
5 customers are viewing this product
Details
Introducing the PANL-631; a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 10-in-1 solution, including 6 × Cellular, 3 × Tri-Band Wi-Fi, and 1 × dual-band active GNSS antenna, which provides exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.
The PANL-631 is an ultra-wideband antenna that covers a broad frequency range from 617 to 6000 MHz. This allows it to be used across different cellular operators and technologies, and it is ready for future cellular technologies up to 6 GHz for 5G applications. The antenna provides an excellent balance between omnidirectionality, pattern diversity, and good radiation abilities at the desired elevation, which is an important criterion, especially for the transportation market.
The three tri-band Wi-Fi antennas offer concurrent 2.4 GHz, 5 GHz, and 6 GHz bands, capable of 802.11n and 802.11ac/ax/be with 3x3 MIMO. This provides complete backward compatibility with older devices while simultaneously offering access to both current high-speed channels and the newest, least congested 6 GHz spectrum for next-generation Wi-Fi 6E/7 devices, ensuring maximum performance, future-proofing, and optimal connectivity across all wireless technologies. Additionally, the inclusion of a dual-band GNSS antenna ensures reliable navigation and precise location tracking, even in challenging environments.
Featuring a low-profile and compact design, the PANL-631 seamlessly blends into any environment, addressing both aesthetic and practical considerations. Its convenient window mount design simplifies installation, allowing for easy attachment to vehicle or building windows through either the included suction cups or adhesive mount. With exceptional GNSS capabilities and wideband performance, the PANL-631 serves as your gateway to unparalleled connectivity across diverse wireless applications.
Features
- 10-in-1 antenna solution; 6 x Cellular, 3 x Wi-Fi, 1 x GNSS
- Ultra-wideband coverage from 617 to 6000 MHz
- 6x6 MIMO cross-polarised antennas for improved results
- Low-profile and rugged mechanical design with an IP65 rating
- Easy to install with adhesive mounting and suction cup options
Download
| Download Name | |
| Poynting PANL-631 Datasheet | |
| Poynting PANL-631 User Guide | |
