Poynting PANL-431 8-IN-1 Omni-Directional Wideband Panel 5G Antenna 410 – 6000 MHz, 7.8 dBi, 4 x Cellular, 3 x Wi-Fi & 1 x GNSS

Introducing the PANL-431; a state-of-the-art, multi-functional panel antenna designed to deliver reliable connectivity on the go. It integrates four cellular antennas, three tri-band Wi-Fi antennas, and one dual-band GNSS antenna into a compact, rugged enclosure, making it well-suited for case-mounted installations using Velcro.

Covering an ultra-wide frequency range from 410 MHz to 6000 MHz, the PANL-431 supports all major 4G LTE and 5G cellular technologies, as well as tri-band Wi-Fi (2.4 GHz, 5 GHz, and 6 GHz) for next-generation standards like Wi-Fi 6E and Wi-Fi 7. This ensures seamless connectivity across rural and urban environments, with lower bands providing long-range coverage and higher bands delivering high-speed performance. The inclusion of dual-band GNSS (L1 and L5) guarantees accurate positioning even in challenging conditions.

The antenna’s omni-directional radiation patterns provide uniform coverage in all directions while the high antenna gain improves signal strength even when partially obstructed by the case material. MIMO support (4x4 for cellular and 3x3 for Wi-Fi) guarantees improved throughput and reliability, which is essential for mobile connectivity applications. The cross-polarized antennas enhance signal reliability, even when the case is moved or placed in environments with multipath interference. If the router in use has only two Wi-Fi ports, the third PANL-431 Wi-Fi antenna can be repurposed for Bluetooth applications, adding flexibility for short-range device connectivity.

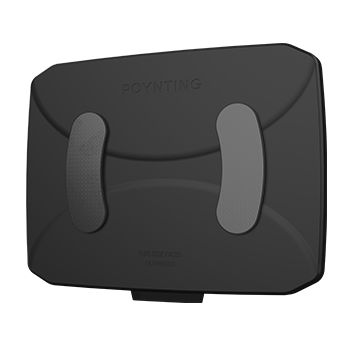

Its low-profile, compact design and IP65-rated enclosure allow seamless integration inside portable cases without compromising durability or available space. Velcro mounting and short coaxial cables simplify installation while minimizing signal loss.

With the PANL-431 mounted inside a portable case, users can deploy and operate the system anywhere—rural locations, urban areas, or in motion—ensuring dependable connectivity wherever it is required.

Features

• 8-in-1 antenna solution; 4 x Cellular, 3 x Wi-Fi, 1 x GNSS
• Ultra-wideband coverage from 410 to 6000 MHz
• 4x4 MIMO cross-polarised antennas for improved performance
• Low-profile and rugged mechanical design with an IP65 rating
• Short cables reduce signal loss and simplify routing inside a case
• Easy to install with adhesive mounting option
