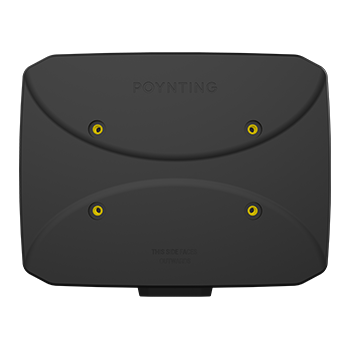

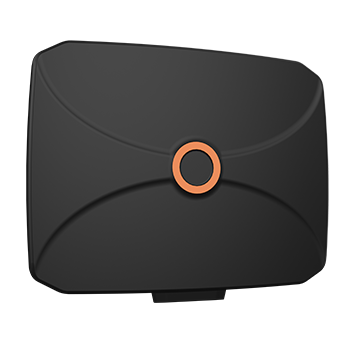

Poynting PANL-401 5-IN-1 Omni-Directional Wideband Panel 5G Antenna 410 – 6000 MHz, 7.8 dBi, 4 x Cellular & 1 x GNSS

Introducing the PANL-401: a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 5-in-1 solution, including 4 × Cellular and 1 × dual-band active GNSS antenna, which provides exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.

The PANL-401 is an ultra-wideband antenna that covers a broad frequency range from 410 to 6000 MHz. This allows it to be used across different cellular operators and technologies, and it is ready for future cellular technologies up to 6 GHz for 5G applications. The antenna provides an excellent balance between omnidirectionality, pattern diversity, and good radiation abilities at the desired elevation, which is an important criterion, especially for the transportation market. Additionally, the inclusion of a dual-band GNSS antenna ensures reliable navigation and precise location tracking, even in challenging environments.

Featuring a low-profile and compact design, the PANL-401 seamlessly blends into any environment, addressing both aesthetic and practical considerations. Its convenient window mount design simplifies installation, allowing for easy attachment to vehicle or building windows through either the included suction cups or adhesive mount.

With exceptional GNSS capabilities and wideband performance, the PANL-401 serves as your gateway to unparalleled connectivity across diverse wireless applications.

Features

• 5-in-1 antenna solution; 4 x Cellular & 1 x Dual Band GNSS
• Ultra-wideband coverage from 410 to 6000 MHz
• 4x4 MIMO linear vertical & horizontal antennas for improved results
• Low-profile and rugged mechanical design with an IP65 rating
• Easy to install with adhesive mounting and suction cup options
