Poynting

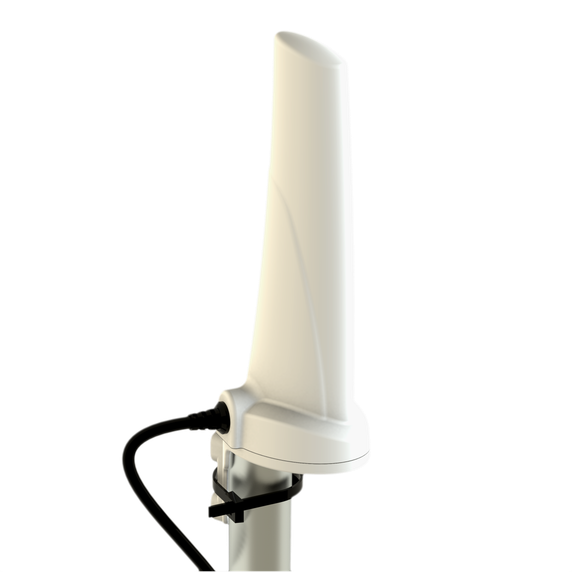

Poynting OMNI-280 Omni-Directional, Wideband, LTE/5G Antenna, 617 - 4200 MHz, 3dBi
Product Code:
A-OMNI-0280-0X-V1
Condition:
New
Weight:
0.16 KGS
Width:
25.00
(cm)
Height:
15.00
(cm)
Depth:
5.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMNI-280 antenna provides an innovative solution for enhancing signal reception across 4G, 3G, and 2G networks.
It is a magnetic, wall- or pole-mountable, single-polarised, full LTE-band antenna that incorporates an ultra-wideband element within a single housing. This design makes it a cost-effective solution for improving signal quality and network performance.
The OMNI-280 increases signal reliability, delivers higher data throughput, and ensures a stable, high-quality connection. This helps improve the overall user experience and supports client retention.
It is suitable for any application using GSM-based networks, including LTE, HSPA, 3G, EDGE, and GPRS.
Features
- Wideband frequency ranges from 617 to 4200 MHz
- Medium gain across frequency range
- Omni-directional radiation pattern for optimum coverage
- Magnetic, wall or pole mountable
- Lightweight
- Increase system transmission reliability
| Antenna Overview | |||
| Product Order Code (SKU) | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
| Ports | 1 | 1 | 1 |
| SISO / MIMO | SISO | SISO | SISO |
| Coax Cable Type | RG 58 | RG 58 | RG 58 |
| Coax Cable Length | 1m | 2m | 2m |
| Connector Type | SMA (M) | SMA (M) | RA - SMA (M) |
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
5 customers are viewing this product
Details
The OMNI-280 antenna provides an innovative solution for enhancing signal reception across 4G, 3G, and 2G networks.
It is a magnetic, wall- or pole-mountable, single-polarised, full LTE-band antenna that incorporates an ultra-wideband element within a single housing. This design makes it a cost-effective solution for improving signal quality and network performance.
The OMNI-280 increases signal reliability, delivers higher data throughput, and ensures a stable, high-quality connection. This helps improve the overall user experience and supports client retention.
It is suitable for any application using GSM-based networks, including LTE, HSPA, 3G, EDGE, and GPRS.
Features
- Wideband frequency ranges from 617 to 4200 MHz
- Medium gain across frequency range
- Omni-directional radiation pattern for optimum coverage
- Magnetic, wall or pole mountable
- Lightweight
- Increase system transmission reliability
| Antenna Overview | |||
| Product Order Code (SKU) | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
| Ports | 1 | 1 | 1 |
| SISO / MIMO | SISO | SISO | SISO |
| Coax Cable Type | RG 58 | RG 58 | RG 58 |
| Coax Cable Length | 1m | 2m | 2m |
| Connector Type | SMA (M) | SMA (M) | RA - SMA (M) |
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
Download
| Download Name | |
| Poynting OMNI-280 Datasheet | |
| Poynting OMNI-280 User Guide | |
