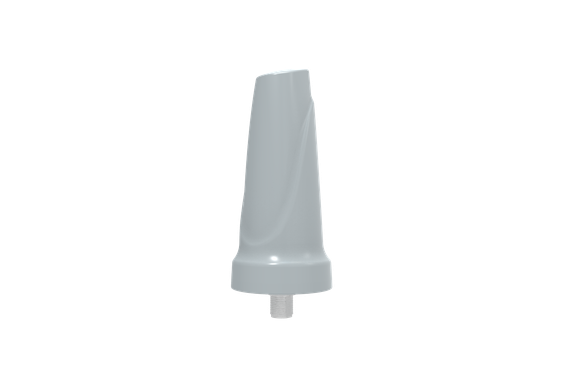

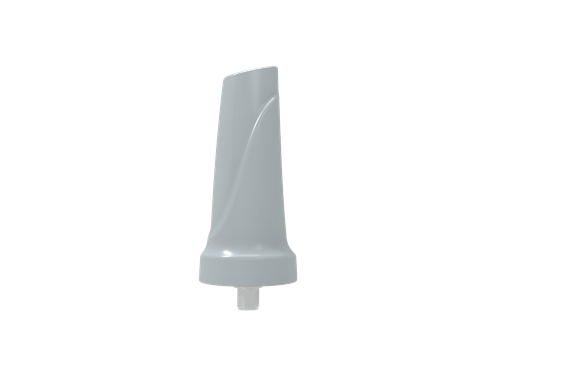

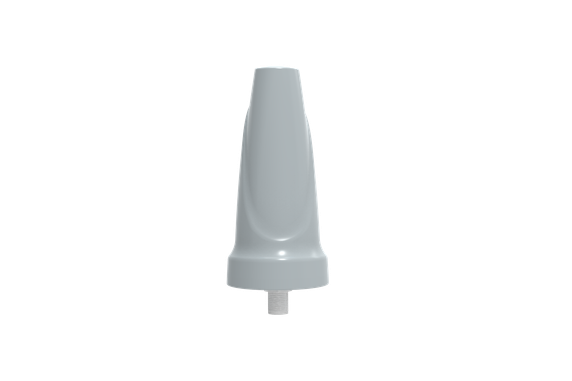

Poynting OMNI-706 Omni-Directional, Dual Band Wi-Fi Antenna 2400 - 6000 MHz, 4.8dBi

The OMNI-706 is a dual band Wi-Fi, omni-directional antenna, developed by Poynting Antennas. The OMNI-706 forms part of our new “Rhyno” antenna range and covers the 2.4 GHz and 5 – 6 GHz Wi-Fi bands, which offers excellent utilization of the radio spectrum. The antenna has a maximum gain of 2 dBi in the 2.4 GHz band and 4.8 dBi in the 5 GHz band, which offers improved performance with reliable connections. The antenna was designed with superior pattern control over the entire frequency range, making the OMNI-706 an exceptional omni-directional antenna for its size.

The OMNI-706 antenna to be connected to any Wi-Fi access point, whether it is older Wi-Fi technology or new dual band Wi-Fi technology. The antenna can therefore be used to resolve channel saturation and provide the ultimate in Wi-Fi performance and flexibility. This means that the antenna can also be used for point-to-point links where there is abundance of RF noise and cluttered environments. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.

Features

• Dual band 2.4 GHz and 5 GHz Wi-Fi antenna
• Omni-directional antenna with medium to high gain
• Easy installation, pole- or wall mountable
• Stylish and robust design
• High pressure water and dust proof enclosure (IP 69K)
