Poynting

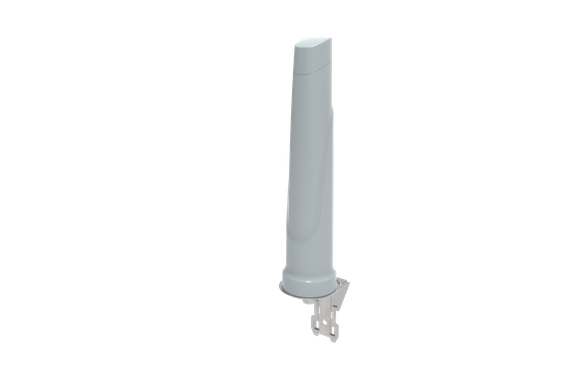

Poynting OMNI-703 Omni-Directional Wi-Fi Antenna 2400 - 2500 MHz, 4.5dBi
Product Code:
A-OMNI-0703-V1-01
Condition:
New
Weight:
0.56 KGS
Width:
38.60
(cm)
Height:
8.00
(cm)
Depth:
9.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMNI-703 antenna forms part of our new “Rhyno” antenna range. The OMNI-703 operates from 2.4 – 2.5 GHz, covering the 2.4 GHz Wi-Fi band, and has a maximum gain of 4.5 dBi. The antenna has a constant gain throughout the entire band of operation, as this offers improved performance with reliable connections. The antenna was designed with superior pattern control over the entire frequency range, making the OMNI-703 an exceptional omni-directional antenna for its size. The antenna housing is made of UV stable ASA, which offers protection in highly corrosive environments, including chemical and toxic environments such as industrial plants. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
Features
- Omni-directional antenna
- Medium gain Wi-Fi antenna from 2400 to 2500 MHz
- Easy installation, pole- or wall mountable
- Stylish and robust design
- High pressure water and dust proof enclosure (IP 69K)
5 customers are viewing this product
Details
The OMNI-703 antenna forms part of our new “Rhyno” antenna range. The OMNI-703 operates from 2.4 – 2.5 GHz, covering the 2.4 GHz Wi-Fi band, and has a maximum gain of 4.5 dBi. The antenna has a constant gain throughout the entire band of operation, as this offers improved performance with reliable connections. The antenna was designed with superior pattern control over the entire frequency range, making the OMNI-703 an exceptional omni-directional antenna for its size. The antenna housing is made of UV stable ASA, which offers protection in highly corrosive environments, including chemical and toxic environments such as industrial plants. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
Features
- Omni-directional antenna
- Medium gain Wi-Fi antenna from 2400 to 2500 MHz
- Easy installation, pole- or wall mountable
- Stylish and robust design
- High pressure water and dust proof enclosure (IP 69K)
Download
| Download Name | |
| Poynting OMNI-703 Datasheet | |
| Poynting OMNI-703 User Guide | |
