Poynting

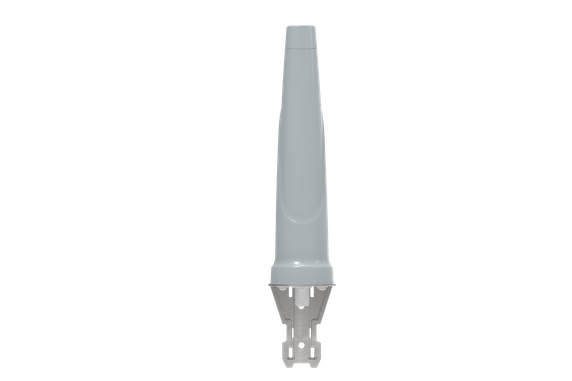

Poynting OMNI-702 Omni-Directional Wi-Fi Antenna 2400 - 2500 MHz, 6dBi
Product Code:
A-OMNI-0702-V1-01
Condition:
New
Weight:
0.25 KGS
Width:
38.60
(cm)
Height:
8.00
(cm)
Depth:
9.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMNI-702 antenna is an omni-directional Wi-Fi antenna, developed by Poynting Antennas. The antenna operates from 2.4 – 2.5 GHz, covering the 2.4 GHz Wi-Fi band, and has a maximum gain of 6 dBi. The constant gain throughout the entire band offers improved performance with reliable connections. The antenna was designed for superior pattern control over the entire frequency range, making the OMNI-702 an exceptional omni-directional antenna for its size. The antenna can connect to any Wi-Fi access point and resolve channel saturation and provide ultimate Wi-Fi performance and flexibility. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna has an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
Features
- High performance omni-directional antenna
- High gain Wi-Fi antenna from 2400 to 2500 MHz
- Easy installation, pole- or wall mountable
- Stylish and robust design
- High pressure water and dust proof enclosure (IP 69K)
5 customers are viewing this product
Details
The OMNI-702 antenna is an omni-directional Wi-Fi antenna, developed by Poynting Antennas. The antenna operates from 2.4 – 2.5 GHz, covering the 2.4 GHz Wi-Fi band, and has a maximum gain of 6 dBi. The constant gain throughout the entire band offers improved performance with reliable connections. The antenna was designed for superior pattern control over the entire frequency range, making the OMNI-702 an exceptional omni-directional antenna for its size. The antenna can connect to any Wi-Fi access point and resolve channel saturation and provide ultimate Wi-Fi performance and flexibility. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna has an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
Features
- High performance omni-directional antenna
- High gain Wi-Fi antenna from 2400 to 2500 MHz
- Easy installation, pole- or wall mountable
- Stylish and robust design
- High pressure water and dust proof enclosure (IP 69K)
Download
| Download Name | |
| Poynting OMNI-702 Datasheet | |
| Poynting OMNI-702 User Guide | |
