Poynting

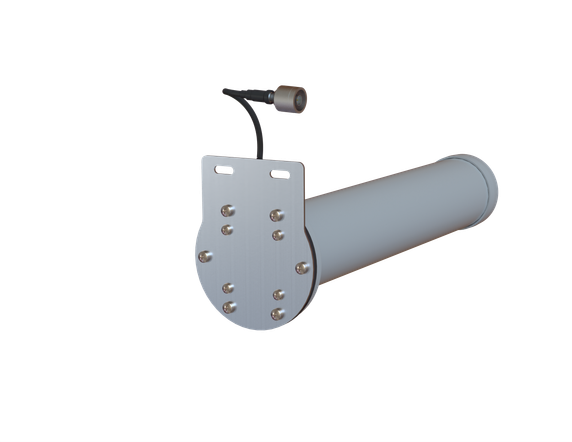

Poynting HELI-31 Circular Polarised, Directional Mine/Tunnel Antenna, LTE/5G/Wi-Fi
Product Code:
A-HELI-0031-V2-01
Condition:
New
Weight:
1.60 KGS
Width:
15.00
(cm)
Height:
16.50
(cm)
Depth:
14.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The HELI-31 forms part of a series of Mini-HELI antennas. Despite their compact size, these antennas are designed for demanding environments, making them ideal for mining tunnels where IoT/M2M connectivity is deployed. They can also be used to provide coverage into stopes.
The HELI-31 is an ultra-wideband antenna, radiating in one direction (uni-directional), which makes it suitable for coverage across a wide frequency range of 1700–7200 MHz. These antennas are typically used for IoT deployments within tunnels to provide telemetry and support mine automation.
This wideband helical antenna enables signal propagation around tunnel bends in non-line-of-sight scenarios and offers strong resilience against common signal-obstructing objects such as trains and drilling machinery that may otherwise obscure the tunnel path.
Features
- Ultra-wideband antenna from 1700 – 7200 MHz.
- Peak gain of 9.5 dBic over the 1700 – 7200 MHz range.
- Proven antenna performance giving maximum range.
- Uni-directional – only radiates in one direction.
- Left & Right-hand Circular Polarised available (for MIMO).
- Intrinsically safe version available on request.
| Antenna Overview | |
| Ports | 1 |
| SISO / MIMO | SISO |
| Frequency Bands | 1700 – 7200 MHz |
| Peak Gain | 9.5 dBic |
| Coax Cable Type | RG 58 |
| Coax Cable Length | 600mm |
| Connector Type | N-Type (M) |
5 customers are viewing this product
Details
The HELI-31 forms part of a series of Mini-HELI antennas. Despite their compact size, these antennas are designed for demanding environments, making them ideal for mining tunnels where IoT/M2M connectivity is deployed. They can also be used to provide coverage into stopes.
The HELI-31 is an ultra-wideband antenna, radiating in one direction (uni-directional), which makes it suitable for coverage across a wide frequency range of 1700–7200 MHz. These antennas are typically used for IoT deployments within tunnels to provide telemetry and support mine automation.
This wideband helical antenna enables signal propagation around tunnel bends in non-line-of-sight scenarios and offers strong resilience against common signal-obstructing objects such as trains and drilling machinery that may otherwise obscure the tunnel path.
Features
- Ultra-wideband antenna from 1700 – 7200 MHz.
- Peak gain of 9.5 dBic over the 1700 – 7200 MHz range.
- Proven antenna performance giving maximum range.
- Uni-directional – only radiates in one direction.
- Left & Right-hand Circular Polarised available (for MIMO).
- Intrinsically safe version available on request.
| Antenna Overview | |
| Ports | 1 |
| SISO / MIMO | SISO |
| Frequency Bands | 1700 – 7200 MHz |
| Peak Gain | 9.5 dBic |
| Coax Cable Type | RG 58 |
| Coax Cable Length | 600mm |
| Connector Type | N-Type (M) |
Download
| Download Name | |
| Poynting HELI-31 Datasheet | |
