Norsat International Inc.

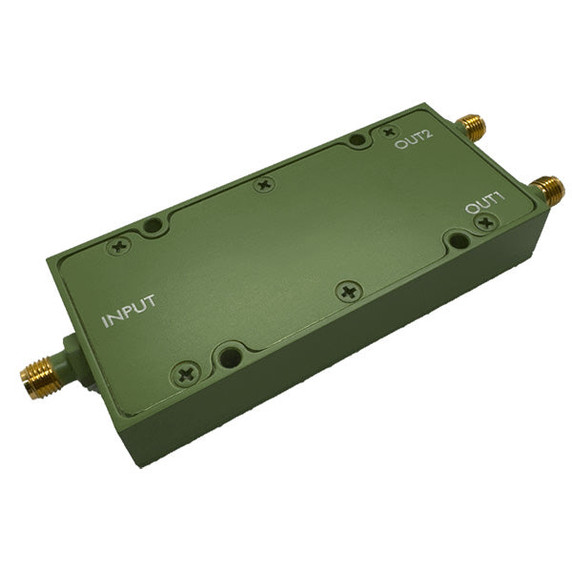

Norsat PD6DES RF Power Divider

Name: Norsat PD6DES RF Power Divider
Brand: Norsat International Inc.
SKU: PD6DES
Price: 1800 USD
Availability: InStock

No reviews yet

Product Code: PD6DES

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 10.16 (cm)

Height: 0.97 (cm)

Depth: 15.24 (cm)

$1,800.00

KEY SPECIFICATIONS
Bandwith	16 GHz
Frequency	2 - 18 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	2:1 max.
Insertion Loss	3.4 dB max.
Isolation	15 dB min (2000-18000MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	1.1 dB max
Coupling	7.8 dB nom.
Impedance	50 ohms
Power Handling Avg	30 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	9.7 mm
Product Length	152.4 mm
Product Width	101.6 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	425g
