Norsat International Inc.

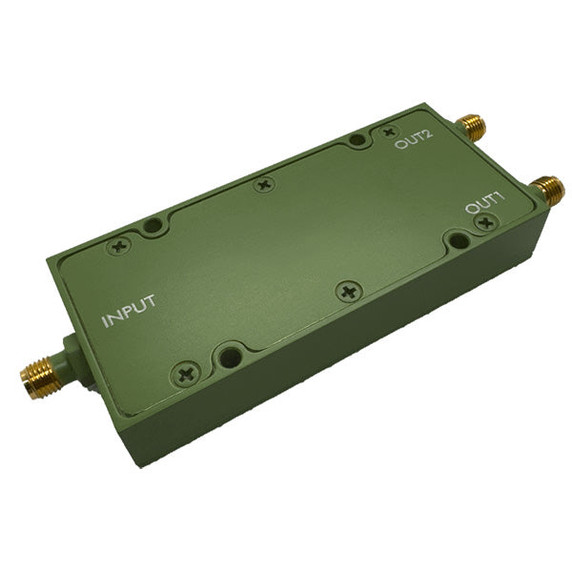

Norsat PD2BCS RF Power Divider

Name: Norsat PD2BCS RF Power Divider
Brand: Norsat International Inc.
SKU: PD2BCS
Price: 620 USD
Availability: InStock

No reviews yet

Product Code: PD2BCS

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 3.71 (cm)

Height: 1.40 (cm)

Depth: 8.26 (cm)

$620.00

KEY SPECIFICATIONS
Bandwith	7.05 GHz
Frequency	0.45 - 7.5 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.8:1 max (450-550MHz) 1.6:1 max (550-7500MHz)
Insertion Loss	1.3 dB max.
Isolation	18 dB min (550-7500MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.6 dB max
Coupling	3 dB nom.
Impedance	50 ohms
Power Handling Avg	30 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	14.0mm
Product Length	82.6 mm
Product Width	37.1 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	85 g

Street Address*

Country*

State/province*

Suburb/city*

Zip/postcode*

Comment*

How would you like us to contact you?* Phone Email Both

Are you interested in a package price? We can put together a price for multiple equipment items or equipment and related accessories?* Yes No

Allow 24 hours for a response

5 customers are viewing this product

Details

KEY SPECIFICATIONS
Bandwith	7.05 GHz
Frequency	0.45 - 7.5 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.8:1 max (450-550MHz) 1.6:1 max (550-7500MHz)
Insertion Loss	1.3 dB max.
Isolation	18 dB min (550-7500MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.6 dB max
Coupling	3 dB nom.
Impedance	50 ohms
Power Handling Avg	30 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	14.0mm
Product Length	82.6 mm
Product Width	37.1 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	85 g
