Norsat International Inc.

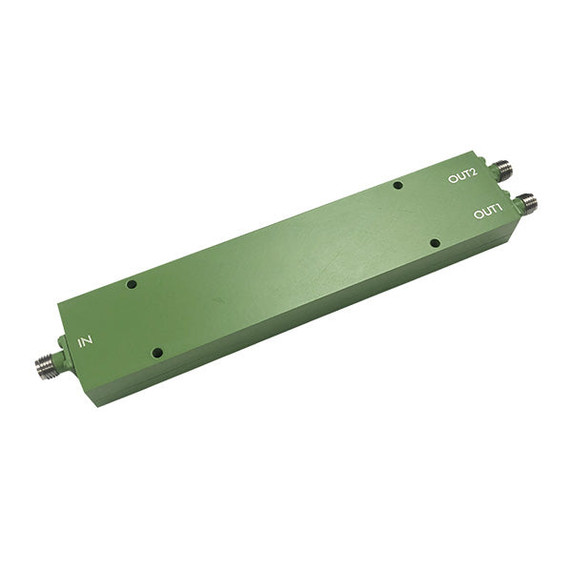

Norsat PD4CAS RF Power Divider

Name: Norsat PD4CAS RF Power Divider
Brand: Norsat International Inc.
SKU: PD4CAS
Price: 840 USD
Availability: InStock

No reviews yet

Product Code: PD4CAS

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 7.11 (cm)

Height: 1.40 (cm)

Depth: 14.61 (cm)

$840.00

KEY SPECIFICATIONS
Bandwith	5.5 GHz
Frequency	0.5 - 6 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.67:1 max.
Insertion Loss	0.7 dB max (500-3000MHz) 1.4 dB max (3000-6000MHz)
Isolation	17 dB min (500-6000MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.7 dB max
Coupling	6 dB nom.
Impedance	50 ohms
Power Handling Avg	30 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	14.0 mm
Product Length	146.1 mm
Product Width	71.1 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	170g
