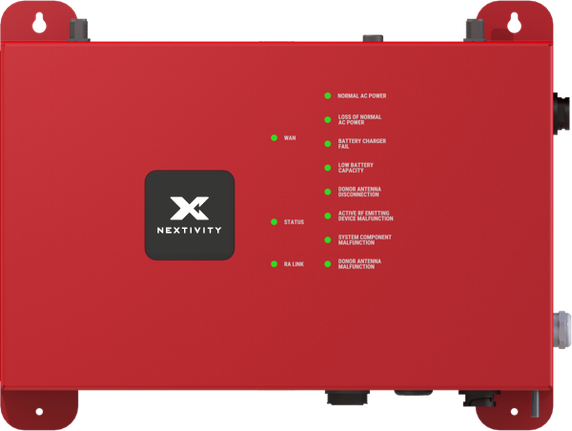

Nextivity SHIELD SOLO Integrated Public Safety BDA

SHIELD SOLO is a half-watt ERCES that can be configured as Class A or Class B to support a wide range of jurisdictions. The system combines uncompromising 700/800 MHz LMR coverage with industry-leading ease of installation, speed of deployment, and remote system monitoring and management capabilities. Built with Nextivity proprietary IntelliBoost software, SHIELD SOLO offers advanced automation features that calculate and set system parameters. This not only enables the fastest pathway to get an ERCES installed and approved by the local AHJ, but also streamlines the process for building owners to receive their CoO as quickly as possible.

System Components
SHIELD SOLO	SHIELD SOLO Battery Backup Unit (BBU)
Model Number: L41-7EB	Model Number: L44-00
The core of the system, SHIELD SOLO is a bi-directional amplifier (BDA) that accepts LMR donor signals and distributes the signals to antennas throughout the building. The system is ideal for buildings in jurisdictions that require code compliant public safety communication solutions, including offices, schools, warehouses, and more. • 0.5W per band for channelized 700 MHz and 800 MHz LMR bands • Class A or Class B software selectable in the field without additional codes or license fees • Proprietary IntelliBoost software for industry-leading automation features • Built-in, end-to-end remote system monitoring and management via the WAVE Portal • Compatible with optional Nextivity SHIELD components or third-party ERCES components	The SHIELD BBU provides constant direct current and battery charging capabilities for SHIELD SOLO systems, which allows the solution to maintain peak operation for up to 12 hours during power outages. • Keeps SHIELD SOLO and system accessories operational for up to 12 hours in the event of a power failure • Supports 80Ah / 12V lead-acid batteries • Two alarm ports for BBU monitoring

Optional Components
SHIELD Remote Annunciator	SHIELD Emergency Power-Off Switch	SHIELD Active Server Antenna
Model Number: F42-10R-100	Model Number: F42-10E-100	Model Number: A33-10A-100
The Remote Annunciator Panel (RA) provides automatic supervisory signals for malfunctions of SHIELD SOLO solutions. In addition to being NEMA 4 rated and complying with NFPA and IFC fire codes, the RA features PoE architecture for quick installation and alarm configuration. The RA also offers real-time component monitoring through the WAVE Portal.	The Emergency Power-Off Switch (EPO) instantaneously shuts down a SHIELD SOLO solution from a single point, eliminating the risk of combustion caused by electricity or static. The EPO is designed to prevent inadvertent operation and can be installed in any location designated by the local AHJ. In addition to being NEMA 4 rated and complying with NFPA and IFC fire codes, the EPO features PoE architecture for quick installation and configuration.	The Active Server Antenna is an active multi-frequency, omnidirectional antenna for emergency communication solutions that require monitoring capabilities at the component level. In addition to being designed for hard cap and false ceilings, the Active Server Antenna features an N-type female connector and rugged IP20 grade electronics. The component is ideal for SHIELD SOLO installations, providing real-time antenna monitoring capabilities through the Nextivity WAVE Portal.
