Nextivity

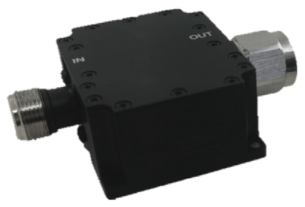

Nextivity C21-200-100 SHIELD Donor Antenna Sensor
Product Code:
C21-200-100
Condition:
New
Weight:
1.00 KGS
Width:
4.50
(cm)
Height:
2.70
(cm)
Depth:
5.45
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The SHIELD Donor Antenna Sensor enables donor antenna monitoring required by NFPA and IFC codes to any antenna used with the SHIELD Network Unit. The Donor Antenna Sensor will work with any antenna that presents as a DC open. If the antenna is shorted at DC, a DC block must be inserted between the antenna and sensor.
| Electrical Specifications | |
| Frequency (MHz) | 0.45 ~ 2.7GHz |
| Insertion Loss | 0.5dB |
| VSWR | 1.3:1 |
| Waterproof Level | IP65 |
| PIM&2*30dBm | –125dBC |
| Impedance (Ω Nom.) | 50 |
| Operating Temperature° | –35ºC ~ +55ºC |
| Connector | RF: N-F N-M |
| Mechanical Specifications | |
| Dimensions (mm) | 45 x 54.5 x 27 mm |
| Compatible with | |
| F42-67ENU | SHIELD Network Unit Class A |
| F42-67ENUB | SHIELD Network Unit Class B |
5 customers are viewing this product
Details
The SHIELD Donor Antenna Sensor enables donor antenna monitoring required by NFPA and IFC codes to any antenna used with the SHIELD Network Unit. The Donor Antenna Sensor will work with any antenna that presents as a DC open. If the antenna is shorted at DC, a DC block must be inserted between the antenna and sensor.
| Electrical Specifications | |
| Frequency (MHz) | 0.45 ~ 2.7GHz |
| Insertion Loss | 0.5dB |
| VSWR | 1.3:1 |
| Waterproof Level | IP65 |
| PIM&2*30dBm | –125dBC |
| Impedance (Ω Nom.) | 50 |
| Operating Temperature° | –35ºC ~ +55ºC |
| Connector | RF: N-F N-M |
| Mechanical Specifications | |
| Dimensions (mm) | 45 x 54.5 x 27 mm |
| Compatible with | |
| F42-67ENU | SHIELD Network Unit Class A |
| F42-67ENUB | SHIELD Network Unit Class B |
