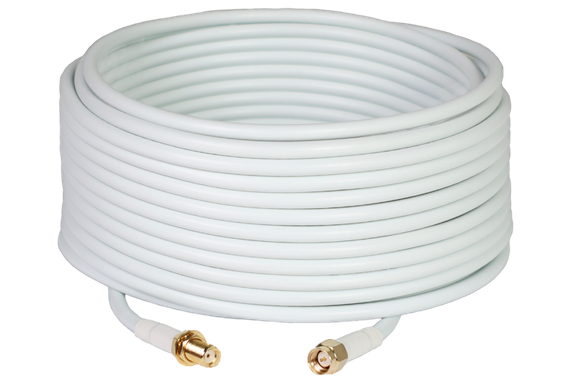

Nextivity Coaxial Cable Assembly
Product Code:
C200-RG58-10 | C200-RG58-20 | C200-RG58-25 | C200-195-10 | C200-195-20 | C200-195-25 | C200-240-10 | C200-240-20 | D11-0020-05012
Condition:
New
Weight:
5.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Nextivity C200 coaxial cable assemblies with RG58, LMR195, and LMR240 cable types provide reliable in-building signal transmission to donor and server antennas for CEL-FI GO G41, CONNECT C41 and GO G51 systems. Designed with a solid copper core and braided copper shield, C200 coaxial cable assemblies are ideal when either routing cables in tight spaces with the flexibility of RG58 or relatively superior shielding and lower loss with LMR195 and LMR240 cable types. These cable assemblies are terminated with 50- ohm SMA RF connectors at each end and are available in 10 m, 20 m, and 25 m lengths.
Features and benefits include:
- Designed to minimize signal attenuation between donor and server antennas while providing cable length extension.
- Wideband operation from 617-6000 MHz supporting all CEL-FI products.
- Easy to install with SMA connectors without needing additional tools.
- Ideal for CEL-FI GO G41, CONNECT C41 and GO G51 systems.
- Use with donor and server antennas having SMA (m) interface.
| RG58 Cable Specifications | |
| Frequency | DC to 6 GHz |
| Inner Conductor Diameter | 0.032 ± 0.0008 in (0.81 ± 0.02 mm) nom., Tinned Copper |
| Outer Conductor Width | 90 % Covergage, 0.16 in (3.95 mm) nom., Tinned Copper Braid |
| Dielectric Diameter | 0.116 ± 0.0059 in (2.95 ± 0.15 mm) nom., Translucent Solid Polyethylene |
| Jacket | White PVC |
| Cable Diameter | 0.195 in (4.95 mm) nom. |
| Attenuation | 10.68 dB/100 ft (35.00 dB/100 m) @ 1GHz |
| Capacitance | 30.80 pF/ft (101.05 pF/m) |
| Velocity Ratio | 66% |
| Shielding | 90 dB min. |
| Return Loss | 9.5 dB typ. |
| Impedance | 50 ± 2 Ω |
| Bend Radius | 0.98 in (25.00 mm) nom. |
| Operating Temperature | -13 to 158 °F (-25 to +70 °C) |
| Dielectric Voltage Withstand | 1900 Vrms |
| Environment Suitability | Indoor only |
| LMR195 Cable Specifications | |
| Frequency | DC to 6 GHz |
| Inner Conductor Diameter | 0.037 ± 0.0008 in (0.94 ± 0.02 mm) nom., Solid Copper |
| Outer Conductor Width | 0.47 in (12 mm) nom., Bonded Aluminum Foil |
| Outer Conductor Thickness | 0.00138 in (0.035 mm) nom., Bonded Aluminum Foil |
| Outer Braid Width | 80 % Covergage, 0.139 in (3.53 mm) nom., Tinned Copper Braid |
| Dielectric Diameter | 0.1102 ± 0.0059 in (2.80 ± 0.15 mm) nom., White Foam Polyethylene |
| Jacket | White PVC |
| Cable Diameter | 0.195 ± 0.0059 in (4.95 ± 0.15 mm) nom. |
| Attenuation | 14.50 dB/100 ft (47.70 dB/100 m) @ 1.5GHz |
| Capacitance | 20.42 pF/ft (67 pF/m) |
| Velocity Ratio | 82% |
| Shielding | 90 dB min. |
| Return Loss | 9.5 dB typ. |
| Impedance | 50 ± 2 Ω |
| Bend Radius | 0.98 in (25.00 mm) nom. |
| Operating Temperature | -13 to 158 °F (-25 to +70 °C) |
| Dielectric Voltage Withstand | 5000 Vrms |
| Environment Suitability | Indoor only |
| LMR195 Cable Specifications | |
| Frequency | DC to 6 GHz |
| Inner Conductor Diameter | 0.0559 ± 0.0008 in (1.42 ± 0.02 mm) nom., Solid Copper |
| Outer Conductor Width | 0.63 in (16 mm) nom., Bonded Aluminum Foil |
| Outer Conductor Thickness | 0.00177 in (0.045 mm) nom., Bonded Aluminum Foil |
| Outer Braid Width | 80 % Covergage, 0.178 in (4.52 mm) nom., Tinned Copper Braid |
| Dielectric Diameter | 0.15 ± 0.0059 in (3.81 ± 0.15 mm) nom., White Foam Polyethylene |
| Jacket | White PVC |
| Cable Diameter | 0.24 ± 0.0059 in (6.10 ± 0.15 mm) nom. |
| Attenuation | 9.9 dB/100 ft (32.52 dB/100 m) @ 1.5GHz |
| Capacitance | 24.20 pF/ft (79.4 pF/m) |
| Velocity Ratio | 84% |
| Shielding | 90 dB min. |
| Return Loss | 9.5 dB typ. |
| Impedance | 50 ± 3 Ω |
| Bend Radius | 0.98 in (25.00 mm) nom. |
| Operating Temperature | -13 to 158 °F (-25 to +70 °C) |
| Dielectric Voltage Withstand | 5000 Vrms |
| Environment Suitability | Indoor only |
| Ordering Information | |||||||
| Model# | GTIN-12 (U.P.C.) | Harmonized Tariff Schedule (HTS) | Export Control Classification Number (ECCN) | Length | Cable Type | Interface 1 | Interface 2 |
| C200-RG58-10 | 812037032240 | 8544.20.00.00 | EAR99 | 32.8 ft (10 m) | RG58 | SMA (m) | SMA (f) |
| C200-RG58-20 | 812037032233 | 8544.20.00.00 | EAR99 | 65.6 ft (20 m) | |||
| C200-RG58-25 | 812037033025 | 8544.20.00.00 | EAR99 | 82.0 ft (25 m) | |||
| C200-195-10 | 812037032202 | 8544.20.00.00 | EAR99 | 32.8 ft (10 m) | LMR195 | ||
| C200-195-20 | 812037031663 | 8544.20.00.00 | EAR99 | 65.6 ft (20 m) | |||
| C200-195-25 | 812037033322 | 8544.20.00.00 | EAR99 | 82.0 ft (25 m) | |||
| D11-0020-05012 | 812037033339 | 8544.20.00.00 | EAR99 | 1.6 ft (0.5 m) | N-type (m) | ||
| C200-240-10 | 812037032219 | 8544.20.00.00 | EAR99 | 32.8 ft (10 m) | LMR240 | SMA (f) | |
| C200-240-20 | 812037032226 | 8544.20.00.00 | EAR99 | 65.6 ft (20 m) | |||
